Hospital door RD100

with glass panelglass

Overview

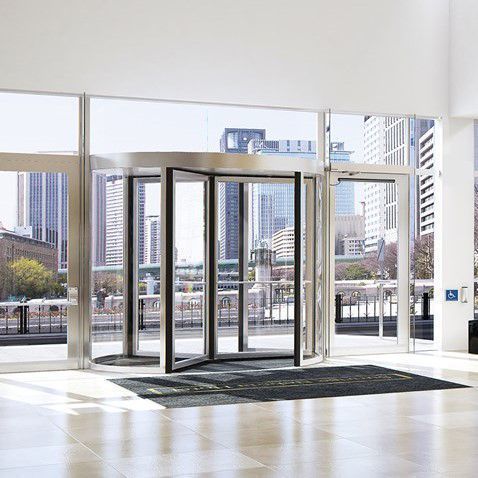

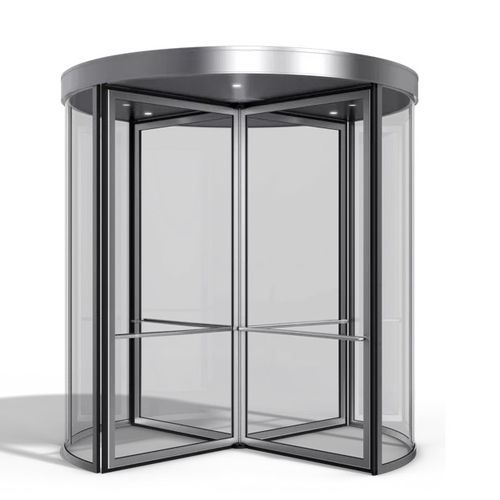

The ASSA ABLOY RD100 revolving door offers a compact, low-energy solution for pedestrian entrances. Designed to handle steady pedestrian flow, it combines manual initiation with adaptive operation to improve user comfort and indoor climate management.

Smart Assist
Smart Assist technology enables manual initiation: the door starts with a gentle push and adapts to the user's initial force, rotating at the user's pace. The door stops in a preferred position to welcome the next user and help maintain a comfortable indoor climate. Braking capability, soft door leaves and an intuitive Return-to-Home position increase safety and support energy efficiency.

Design & Materials

• Available diameters: 7' and 8'
• Three- or four-wing configurations
• Door leaves: flat tempered safety glass, 1/4" (6 mm)
• Curved outer walls: laminated safety glass, 7/16" (11 mm)

Safety & Operation

• Smart Assist: minimum effort to initiate rotation
• Revolving door leaves fold out in the direction of egress during an evacuation
• Speed control unit prevents rotation faster than allowed by building codes
• Return-to-Home moves leaves to the most energy-efficient starting position after manual rotation

Technical specifications

• Product ID: RD100 (RD4)
• Available diameters: 7', 8'
• Configurations: three-wing or four-wing
• Door leaves: flat tempered safety glass, 1/4" (6 mm)
• Curved outer walls: laminated safety glass, 7/16" (11 mm)
• Smart Assist manual initiation and adaptive speed
• Braking capability and soft door leaves for user safety
• Speed control unit to comply with building code rotation limits
• Return-to-Home feature for energy efficiency
