Hospital door SL500 T67

telescopicslidingautomatic

Overview

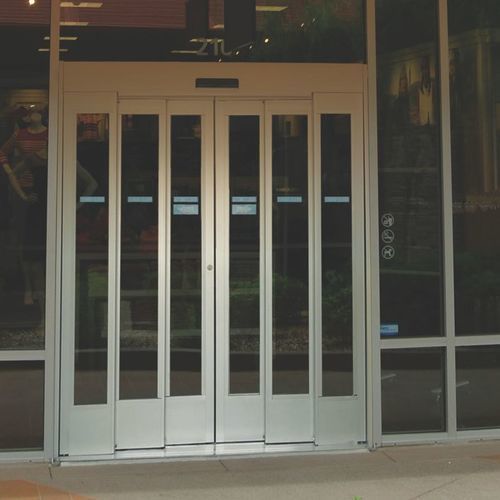

ASSA ABLOY SL500 T67 telescopic automatic sliding door — designed for narrow entryways.
The SL500 T67 provides a telescoping sliding solution sized to replace a pair of 3'0" x 7'0" manual swing doors while improving usable opening width. It is suitable for new construction and retrofit projects where frame width is limited.

Key features

• Product ID: SL500 T67
• Variations: overhead concealed (OHC) / surface mounted (SA) / overhead concealed with transom
• Minimum overall frame width: 72" (1829 mm)
• Usable door opening: minimum 46" (usable clear opening)
• Full breakout capability
• ASHRAE 90.1 compliance
• Available mounting options for tight entryways

BIM objects
Downloadable BIM objects and Revit/RFA assets are available for the following configurations:

• ASSA ABLOY SL500 T67 — overhead concealed
• ASSA ABLOY SL500 T67 — overhead concealed with transom
• ASSA ABLOY SL500 T67 — surface mount

Downloads and documents (available)
Product brochure (PDF), technical drawings (PDF), Revit/BIM files (RFA), and specification notes (DOC/DOT) are available for design and specification purposes.

Technical specifications

• Model / Product ID: SL500 T67
• Minimum overall frame width: 72" (1829 mm)
• Usable door opening: minimum 46"
• Typical application: replaces pair of 3'0" x 7'0" manual swing doors in narrow entryways
• Mounting options: overhead concealed (OHC), overhead concealed with transom, surface mount (SA)
• Operation: telescoping sliding with full breakout
• Compliance: ASHRAE 90.1
• Available assets: BIM objects (RFA), Revit files, product leaflet (PDF), product drawings (PDF), specifier notes (DOC/DOT)
