Protection door RD600 UniTurn

securityfor healthcare facilitiesswing

Overview

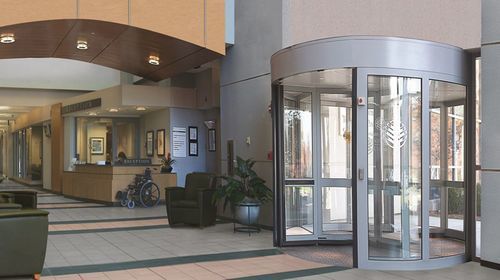

ASSA ABLOY RD600 UniTurn is an automatic two-wing revolving door featuring a perimeter drive that removes the need for a central shaft. The layout increases clear internal space while providing controlled entry and exit flows suitable for high-traffic architectural entrances. Multiple diameter configurations are available to match building requirements.

Key features

• Two-wing UniTurn configuration with perimeter drive (no central shaft)
• High throughput: largest configuration up to 18 ft (5.5 m) diameter
• Multiple diameter options (examples: 12 ft / 3.7 m, 15 ft / 4.6 m, 18 ft / 5.5 m)
• Increased internal space to accommodate shopping/luggage carts, wheelchairs and stretchers
• Energy performance: manufacturer-claimed energy savings compared with swing doors (example: up to 74%)
• Optional integrated air curtain to improve entrance climate control

Benefits / Functional highlights

• Perimeter drive enhances usable interior space and circulation capacity
• Center door leaf breakout function for emergency access or service
• Presence detectors and soft safety edges for user protection
• Floor-mounted design for simplified installation and alignment
• Two display areas within the rotating section for signage or safety information

Applications

• Hospitality
• Retail
• Healthcare

Technical specifications

• Model type: two-wing revolving door (UniTurn)
• Drive type: perimeter drive (no central shaft)
• Capacity: up to 5,880 people per hour for largest (18 ft / 5.5 m) diameter
• Available diameters/sizes: multiple options including 12 ft / 3.7 m, 15 ft / 4.6 m, 18 ft / 5.5 m
• Accessibility: designed to accommodate carts, wheelchairs and stretchers
• Energy performance: manufacturer-claimed significant savings vs swing doors
• Optional features: air curtain
• Safety features: presence detectors, soft safety edges, center leaf breakout
• Installation: floor-mounted option
