- Insulation door
- ASSA ABLOY Entrance Systems Italy Srl
Insulation door RD700hermetichospitaldrum
Add to favorites
Compare this product
Characteristics
- Function
- insulation, hermetic
- Application domain
- hospital
- Opening type
- folding, drum
- Material
- stainless steel
- Other characteristic
- automatic
Description
Product overview

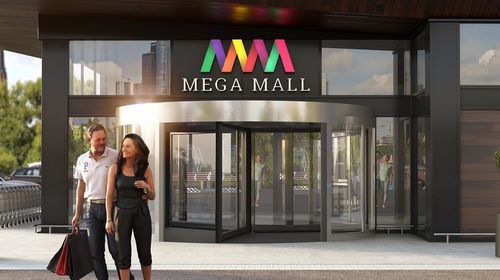

The ASSA ABLOY RD700 (formerly RD3L) is a three-wing revolving door engineered for high-traffic building entrances. It provides a wide, continuous passage that accommodates trolleys, luggage carts and wheelchairs while minimising drafts and heat loss through controlled sector movement and sealing.
Features
Applications
Suitable for hotel lobbies, retail entrances, transport hubs and other public buildings requiring secure, high-capacity and energy-efficient access solutions.
Compliance and standards
Technical specifications
The ASSA ABLOY RD700 (formerly RD3L) is a three-wing revolving door engineered for high-traffic building entrances. It provides a wide, continuous passage that accommodates trolleys, luggage carts and wheelchairs while minimising drafts and heat loss through controlled sector movement and sealing.
Features
- Three-wing configuration for high capacity and continuous pedestrian flow
- Full rotating ceiling to provide even lighting and eliminate brush marks
- Hidden presence sensors for a clean aesthetic and unobstructed sightlines
- Optional night-closing door to secure the entrance outside operating hours
- Emergency release and wing folding mechanism to enable rapid evacuation
- Designed to reduce draughts and improve energy performance
Applications
Suitable for hotel lobbies, retail entrances, transport hubs and other public buildings requiring secure, high-capacity and energy-efficient access solutions.
Compliance and standards
- Designed and supplied in accordance with Machinery Directive (2006/42/EC)
- Complies with Low Voltage Directive (2006/95/EC)
- Complies with Electromagnetic Compatibility Directive (2004/108/EC)
- Meets requirements according to DIN 18650 and EN 16005
Technical specifications
- Model: RD700 (formerly RD3L)
- Product ID: RD3L
- Power supply: 230 V, 50 Hz (mains fuse max 10 A); alternative 100–120 V, 50/60 Hz (see product documentation)
- Power consumption: approx. 400 W (operational) / approx. 30 W (standby)
- Lighting: LED low-power lighting
- Ambient temperature range: -20 °C to +50 °C
- Internal height (non-standard options): 2000–2600 mm
- Fascia height (non-standard options): 340–1250 mm
- Finish options: powder-coated (RAL colours), anodized, stainless steel cladding, painted steel cladding
- Safety: hidden sensors and engineered escape/folding function of wings for emergency egress
- Applicable directives and standards: Machinery Directive 2006/42/EC, Low Voltage Directive 2006/95/EC, EMC Directive 2004/108/EC, DIN 18650, EN 16005
