Medical cable SJR-BPC-04

for electrosurgical unitsbanana plugreusable

Short Description

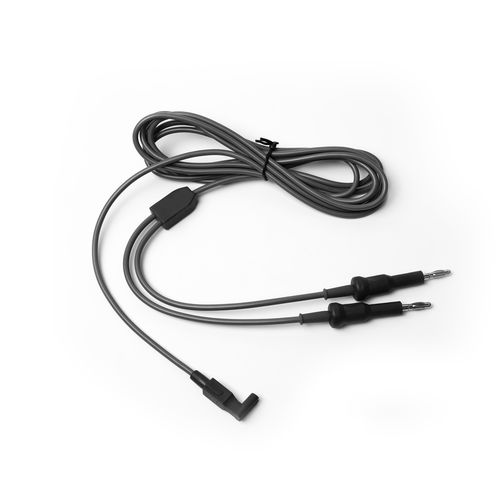

The Plasma resectoscope bipolar cable SJR-BPC-04 is a high-frequency surgical cable designed for Plasma Bipolar Resectoscope systems. It connects bipolar cutting and coagulation instruments to the electrosurgical generator. The cable measures 3.0 m, uses a 2-pin instrument connector and a 4 mm banana plug for the generator. Constructed in medical-grade silicone, it is reusable and validated for up to 100 cycles of high-temperature/high-pressure sterilization. Supplied as 1 piece per bag with a 12-month warranty.

Features

• Compatible with Plasma Bipolar Resectoscope systems to connect bipolar cutting and coagulation instruments to the generator.
• High-frequency cable engineered to ensure precise HF energy transmission and minimal signal loss.
• Material: Medical-grade silicone, flexible and durable for repeated clinical use.
• Instrument connector: 2-pin plug designed for secure instrument attachment.
• Generator connector: 4 mm banana plug for standard electrosurgical generators.
• Length: 3.0 m to provide mobility and flexibility in the OR.
• Packaged as 1 piece per bag for sterile handling and inventory control.
• 12-month warranty.

Technical specifications

• Model: SJR-BPC-04
• Cable type: Plasma resectoscope bipolar cable (high-frequency surgical cable)
• Cable length: 3.0 m
• Instrument connector: 2-pin plug
• Generator connector: 4 mm banana plug
• Material: Medical-grade silicone
• Sterilization durability: Up to 100 cycles of high-temperature/high-pressure sterilization (reusable)
• Packaging: 1 piece per bag
• Warranty: 12 months
• Compatibility: Plasma Bipolar Resectoscope systems; suitable for bipolar cutting and coagulation devices
