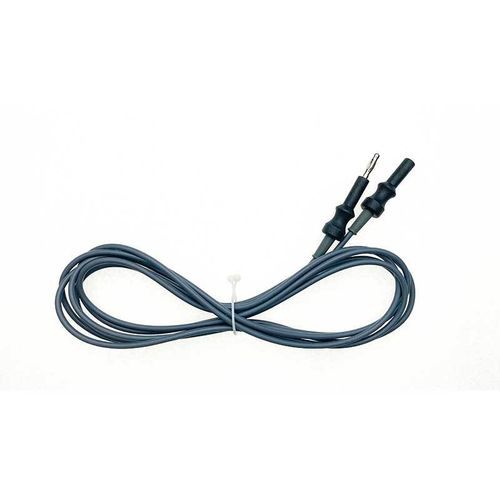

Electrosurgical unit cable SJR-LMC03

plug-in typesiliconereusable

Short Description
The Taktvoll SJR-LMC03 laparoscopic monopolar high-frequency cable is a reusable, medical-grade cable engineered to transmit monopolar electrosurgical energy safely and reliably during minimally invasive procedures.

Features
Designed for laparoscopic monopolar electrosurgery, this cable links the instrument to an electrosurgical unit (ESU) or HF generator, ensuring precise delivery of cutting and coagulation energy with minimal signal loss.

Application
Monopolar electrosurgery in laparoscopic procedures, including cutting, coagulation and tissue dissection.

Connector Type
Generator End: 4.0 mm male plug
Instrument End: 4.0 mm female socket

Material & Durability
Constructed with a medical-grade silicone sheath that provides high flexibility and resistance to kinking. Reinforced strain relief at both ends extends service life under repeated clinical use.

Sterilization
Fully autoclavable (steam sterilizable) at standard hospital sterilization temperatures for repeated reuse while maintaining sterility.

Safety
Designed with effective insulation to minimize electrical leakage and reduce the risk to patient and OR staff during electrosurgical procedures.

Cable Length
Typically supplied in ~3 m (approx. 10 ft) length to allow sufficient freedom of movement within the sterile field; other lengths available on request.

Technical specifications

• Model: SJR-LMC03
• Brand: Taktvoll
• Intended use: Monopolar laparoscopic electrosurgery
• Generator connector: 4.0 mm male plug
• Instrument connector: 4.0 mm female socket
• Material: Medical-grade silicone sheath, highly flexible
• Durability: Reinforced strain relief at both ends for extended service life
• Sterilization: Fully autoclavable (steam sterilizable)
• Safety: High insulation to prevent electrical leakage
• Length: Typically ~3 m (approx. 10 ft); other lengths possible
• Reusable: Yes (designed for repeated use after sterilization)
