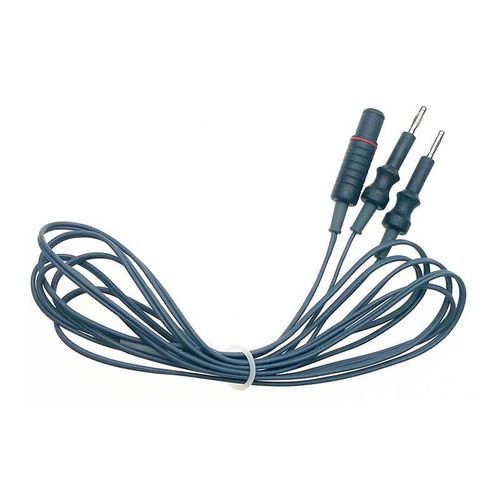

Electrosurgical unit cable SJR-LBC01medicalplug-in typebanana plug
Add to favorites
Compare this product
Characteristics
- Applications
- for electrosurgical units, medical
- Connection type
- plug-in type, banana plug
- Other characteristics
- silicone, reusable
- Length
3 m
(9'10" )
Description
Features
Application
Connector Type
Material & Durability
Sterilization
Safety
Cable Length
Technical specifications
- SJR-LBC01 laparoscopic bipolar high frequency cable for bipolar electrosurgery in minimally invasive procedures
- Reusable, medical-grade construction designed for repeated sterilization and clinical use
Application
- Bipolar electrosurgery during laparoscopic procedures: cutting, coagulation and dissection
Connector Type
- Generator end: Dual 4.0 mm banana plugs
- Instrument end: 3.5 mm plug compatible with standard bipolar laparoscopic instruments
Material & Durability
- Medical-grade silicone sheath: highly flexible and kink-resistant for safe handling in the sterile field
- Reinforced strain relief at both connector ends to reduce mechanical stress and extend service life
Sterilization
- Fully autoclavable (steam sterilizable) at standard autoclave temperatures for repeated reuse
Safety
- High-quality electrical insulation to minimize leakage current and ensure safety for patient and operating room staff
Cable Length
- Standard length: 3 meters (approx. 10 feet) to provide adequate freedom of movement within the sterile field
Technical specifications
- Model: SJR-LBC01
- Product type: Laparoscopic bipolar high frequency cable
- Reusable: Yes (medical-grade, designed for repeated sterilization)
- Primary function: Transmit bipolar electrical energy for cutting, coagulation and dissection in laparoscopic surgery
- Generator connector: Dual 4.0 mm banana plugs
- Instrument connector: 3.5 mm plug
- Sheath material: Medical-grade silicone (flexible, kink-resistant)
- Strain relief: Reinforced at both connector ends
- Sterilization method: Fully autoclavable (steam sterilizable) at standard temperatures
- Typical cable length: 3 meters (approx. 10 feet)
- Safety features: High-quality insulation to prevent electrical leakage
