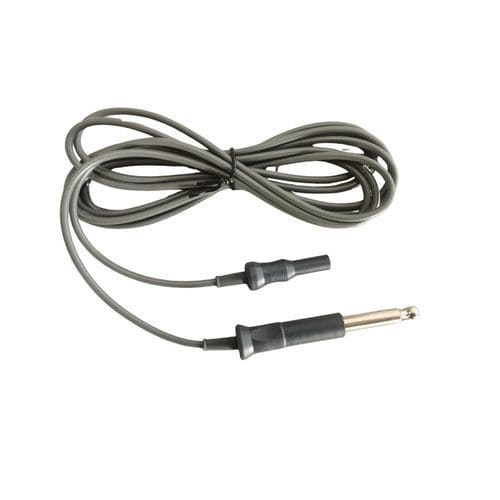

Electrosurgical unit cable SJR-LMC01

medicalplug-in typesilicone

Short Description
SJR-LMC01 laparoscopic monopolar high-frequency cable provides the electrical connection between a monopolar laparoscopic instrument and an electrosurgical unit (ESU) or HF generator.

Features
Reusable, medical-grade cable for minimally invasive surgery. It transmits monopolar radiofrequency energy for cutting, coagulation and dissection during laparoscopic procedures.

Application
Monopolar electrosurgery in laparoscopic procedures.

Connector Type

• Generator end: standard 8.0 mm male plug
• Instrument end: 4.0 mm female socket

Material & Durability
Medical-grade silicone sheath, highly flexible and kink-resistant, with reinforced strain reliefs at both connectors for extended service life.

Sterilization
Fully autoclavable (steam sterilizable) at standard hospital autoclave temperatures for repeated use while maintaining sterility.

Safety
High electrical insulation to minimise leakage and ensure patient and OR staff safety.

Cable Length
Standard length typically 3 meters (approx. 10 ft); other lengths may be available.

Technical specifications

• Model: SJR-LMC01
• Type: Laparoscopic monopolar high-frequency (HF) cable, reusable
• Application: Monopolar electrosurgery for laparoscopic procedures
• Generator connector: 8.0 mm male plug
• Instrument connector: 4.0 mm female socket
• Sheath material: Medical-grade silicone, highly flexible and kink-resistant
• Strain relief: Reinforced at both connector ends
• Sterilization: Fully autoclavable (steam sterilizable)
• Safety: High insulation to prevent electrical leakage
• Cable length: Typically 3 meters (approx. 10 ft); other lengths may be available
