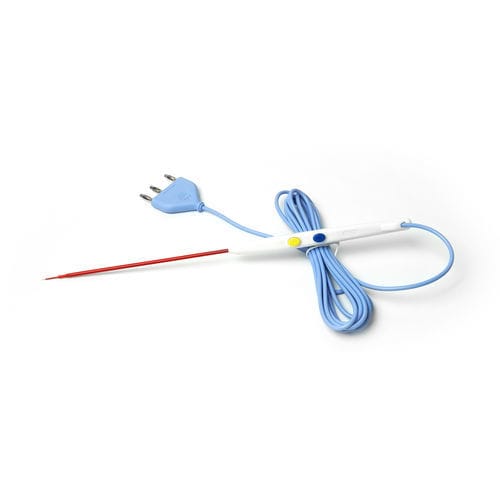

Electrosurgical electrode SJR-PD005

for electrosurgical cuttingcoagulationball

Short Description
The tip length can be adjusted from 45 mm to 140 mm, accommodating various surgical depths from superficial to deep.

Features

• Adjustment range: tip length adjustable from 45 mm to 140 mm to suit superficial to deep surgical procedures
• Cord length: equipped with a 3 m (10 ft) cord for convenient operation
• Single-use product packaged sterilely

Tungsten Electrode Tip Options

• Tungsten needle tip: extremely fine, suitable for precise cutting in neurosurgery, oral surgery and other specialties
• Tungsten hook tip: ideal for lifting and separating tissue
• Tungsten ball tip: commonly used for precise electrocoagulation and hemostasis

Packaging
50 pieces per box; 200 pieces per carton.

Product Certification
Equipped with a medical device registration certificate; packaged as single-use and ethylene oxide (EO) sterilized to ensure safety, sterility and immediate use.

Technical specifications

• Model: SJR-PD005
• Tip length adjustment range: 45 mm – 140 mm
• Minimum tungsten needle tip diameter: 0.1 mm
• Tapered tip length: 20 mm
• Tip types available: tungsten needle, tungsten hook, tungsten ball
• Cord length: 3 m (10 ft)
• Sterilization method: Ethylene oxide (EO)
• Intended use: Single-use disposable electrosurgical pencil
• Packaging: 50 pcs/box; 200 pcs/carton
