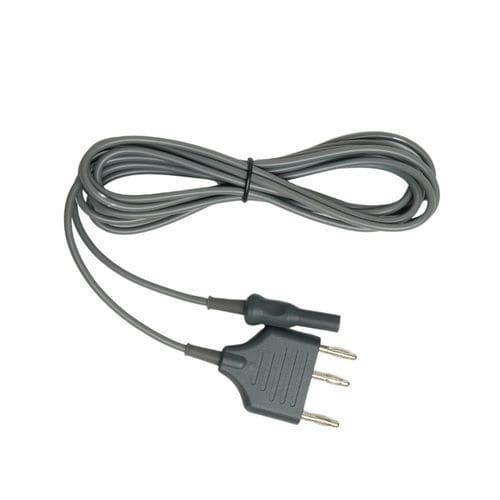

Electrosurgical unit cable SJR-LMC05

medicalreusablesilicone

Short Description
The SJR-LMC05 laparoscopic monopolar high-frequency cable connects a monopolar laparoscopic instrument to an electrosurgical unit (ESU)/HF generator, transmitting monopolar electrical energy for cutting, coagulation and dissection during laparoscopic procedures.

Features

• Reusable medical-grade cable intended for minimally invasive surgery
• Flexible silicone sheath designed to resist kinking
• Robust strain relief at both connector ends for extended service life

Application

• Monopolar electrosurgery in laparoscopic procedures (cutting, coagulation, dissection)

Connector Type

• Generator end: 3-pin monopolar plug
• Instrument end: 4.0 mm female socket

Material & Durability

• Medical-grade silicone sheath with high flexibility
• Designed for repeated clinical use with reinforced connectors

Sterilization
Fully autoclavable (steam sterilization) at standard temperatures to allow repeated reuse while maintaining sterility.

Safety
High-quality insulation to minimize electrical leakage and protect patient and OR personnel.

Cable Length
Typically supplied in standard lengths such as 3 m (approx. 10 ft) to provide adequate working range within the sterile field.

Technical specifications

• Model: SJR-LMC05
• Type: Laparoscopic monopolar HF cable for electrosurgical use
• Connector (generator side): 3-pin monopolar plug
• Connector (instrument side): 4.0 mm female socket
• Material: Medical-grade silicone sheath, highly flexible
• Durability: Reinforced strain relief; reusable design
• Sterilization: Fully autoclavable (steam)
• Intended use: Monopolar electrosurgery — cutting, coagulation, dissection in laparoscopy
• Safety: Insulated to minimize electrical leakage
• Typical cable length: 3 m (approx. 10 ft)
