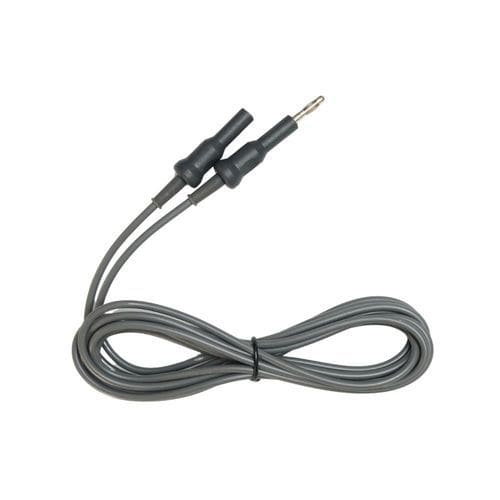

Medical cable SJR-LMC02

for electrosurgical unitsplug-in typesilicone

Product Overview
This reusable medical-grade cable connects a monopolar laparoscopic instrument to an electrosurgical unit (ESU) or HF generator, transmitting monopolar electrical energy for cutting, coagulation and dissection during minimally invasive procedures.

Application

• Monopolar electrosurgery in laparoscopic procedures.

Connector Type

• Generator end: 4.0 mm male plug.
• Instrument end: 3.0 mm female socket.

Material & Durability
Medical-grade silicone sheath provides high flexibility and kink resistance. Robust strain relief at both connector ends is designed for extended service life under repeated clinical use.

Sterilization
Fully autoclavable (steam sterilizable) at standard hospital cycle temperatures for repeated reuse while maintaining sterility.

Safety
High-quality insulation minimizes risk of electrical leakage, protecting patient and OR staff during electrosurgical procedures.

Cable Length
Typically supplied in standard lengths such as 3 meters (approx. 10 feet) to allow adequate freedom of movement within the sterile field.

Specifications

• Model: SJR-LMC02
• Function: Transmit monopolar electrical energy for cutting, coagulation and dissection in laparoscopic procedures
• Application: Monopolar laparoscopic electrosurgery
• Generator connector: 4.0 mm male plug
• Instrument connector: 3.0 mm female socket
• Sheath material: Medical-grade silicone, highly flexible, kink-resistant
• Durability: Robust strain relief at both connector ends
• Sterilization method: Fully autoclavable (steam sterilizable)
• Insulation: High-quality insulation to prevent electrical leakage
• Typical cable length: 3 meters (approx. 10 feet)
• Reusable: Yes (medical-grade reusable cable)
