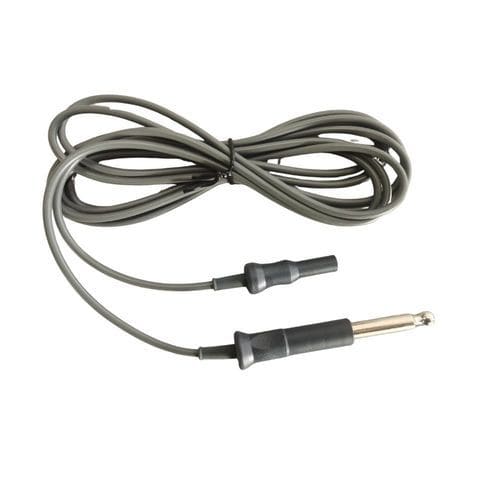

Electrosurgical unit cable SJR-LMC04

medicalsiliconereusable

Short description:
SJR-LMC04 laparoscopic monopolar high-frequency cable connects a monopolar laparoscopic instrument to an electrosurgical unit (ESU) or HF generator, enabling transmission of monopolar electrical energy for cutting and coagulation during minimally invasive procedures.

Features:
Reusable medical cable with flexible silicone sheath and reinforced strain relief at connectors; designed to transmit monopolar HF current reliably in laparoscopic settings.

Application:
Monopolar electrosurgery in laparoscopic and minimally invasive procedures.

Connector type:
Generator end: 8.0 mm male plug
Instrument end: 3.0 mm female socket.

Material & Durability:
Medical-grade silicone sheath, kink-resistant construction, reinforced strain relief for extended service life.

Sterilization:
Fully autoclavable (steam sterilizable) for repeated use.

Safety:
High insulation to minimize electrical leakage and protect patient and OR staff.

Cable length:
Standard lengths available, typically 3.0 meters to allow sufficient freedom in the sterile field.

Technical specifications:

• Model: SJR-LMC04
• Intended use: Monopolar laparoscopic electrosurgery
• Generator connector: 8.0 mm male plug
• Instrument connector: 3.0 mm female socket
• Sheath material: Medical-grade silicone, highly flexible
• Durability features: Kink-resistant, reinforced strain relief at both ends
• Sterilization: Fully autoclavable (steam sterilizable)
• Safety: High insulation to prevent electrical leakage
• Typical cable length: 3.0 meters
• Reusable: Yes
