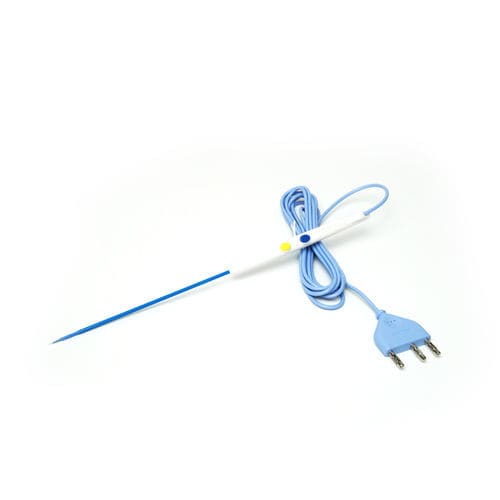

Electrosurgical electrode SJR-PD006

for electrosurgical cuttingcoagulationneedle

Short Description
Adjustment range: tip length adjustable from 45 mm to 140 mm to accommodate procedures from superficial to deep tissue access.

Features
Supplied sterile for single-use procedures with multiple interchangeable tip options.

• Tungsten needle tip — extremely fine for precise cutting in neurosurgery, oral surgery and other specialties.
• Tungsten hook tip — for tissue lifting and dissection.
• Tungsten ball tip — for focused electrocoagulation and hemostasis.

Cord length: 3 m (10 ft).

Sterility and Packaging
Product certification: supplied with medical device registration certificate. Sterilization: ethylene oxide sterilized in single-use packs to ensure sterility and immediate use.
Packaging: 50 pieces per box, 200 pieces per carton.

Needle Details
Needle minimum diameter: 0.3 mm; tapered length: 20 mm.

Technical Specifications

• Model: SJR-PD006
• Brand: TAKTVOLL
• Adjustment range (tip length): 45 mm – 140 mm
• Tungsten tip options: Needle tip, Hook tip, Ball tip
• Needle minimum diameter: 0.3 mm
• Needle tapered length: 20 mm
• Cord length: 3 m (10 ft)
• Sterilization: Ethylene oxide sterilized (single-use packaging)
• Certification: Medical device registration certificate (product supplied with certificate)
• Packaging quantity: 50 pieces/box, 200 pieces/carton
