Electrosurgical unit cable SJR-BPC-04

medicalbanana plugplug-in type

Short Description

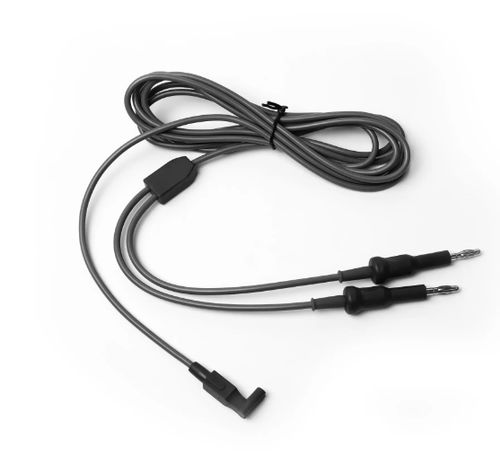

The Plasma Resectoscope Bipolar Cable SJR-BPC-04 is a high-frequency electrosurgical cable designed for use with plasma bipolar resectoscope systems. It transmits HF energy between bipolar cutting/coagulation instruments and the generator. Cable length: 3.0 meters; instrument connector: 2-pin; generator connector: 4 mm banana plug. Reusable and resistant to repeated sterilization cycles.

Features

• Compatible with plasma bipolar resectoscope systems for bipolar cutting and coagulation.
• High-frequency transmission for controlled electrosurgical performance.
• Medical-grade silicone jacket for flexibility and biocompatibility.
• Reusable; withstands up to 100 cycles of high-temperature, high-pressure sterilization.
• Instrument connector: 2-pin plug; generator connector: 4 mm banana plug.
• Standard length: 3.0 m to provide operational flexibility.

Packaging & Warranty

• Packaging: 1 piece per bag.
• Warranty: 12 months.

Technical Specifications

• Product type: Plasma Resectoscope Bipolar Cable (high-frequency surgical cable).
• Model: SJR-BPC-04.
• Material: Medical-grade silicone.
• Sterilization resistance: Up to 100 cycles at high-temperature, high-pressure sterilization.
• Reuse: Reusable.
• Instrument connector: 2-pin plug.
• Generator connector: 4 mm banana plug.
• Cable length: 3.0 meters.
• Packaging: 1 piece per bag.
• Warranty: 12 months.
• Compatibility: Plasma bipolar resectoscope systems; suitable for bipolar cutting and coagulation instruments.
