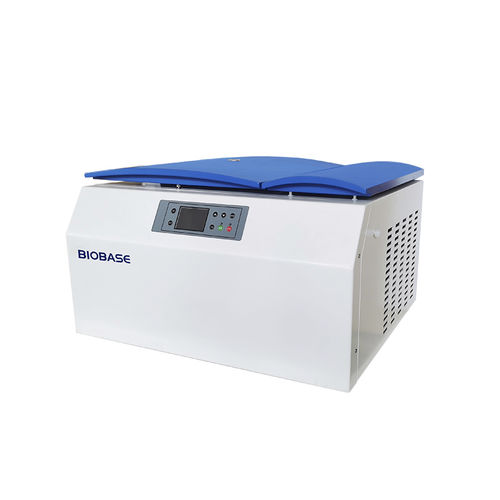

Clinical centrifuge BKC-TH21RM

for researchmultifunctionmultipurpose

Introduction
The BKC-TH21RM is a refrigerated, high-speed, multi-rotor benchtop centrifuge designed for clinical and research laboratories. It accepts a wide range of rotors and adapters for blood tubes, microplates and tubes, enabling multiple workflows with one instrument while maintaining precise temperature control.

Key features

• Refrigeration with imported non‑fluorine compressor and double-cycle cooling for stable temperature control.
• Multi-stage shock absorption for low vibration and noise (≤65 dB).
• Embedded microprocessor control with brushless DC motor drive for accurate speed control.
• LCD display showing real-time operating parameters; broad rotor and adapter compatibility.

Technical specifications
Model: BKC-TH21RM
Max. speed: 21000 rpm
Max. RCF: 30700×g
Max. capacity: 4×500 ml
Speed precision: ±1% or ±20 rpm
Timing range: 1 s ~ 99 min 59 s
Temperature range: -20 ~ 40 ℃
Noise: ≤65 dB
Power consumption: 1200 W
Power supply: AC110~220V, 50/60Hz
External size (W×D×H): 670×750×440 mm
Package size (W×D×H): 900×820×700 mm
Net weight: 102 kg
Gross weight: 142 kg

Rotors and adapters
The unit supports multiple rotor types including swing rotors, angle rotors, microplate rotors and PCR rotors. Typical examples: No.1 swing rotor / hanging cup — 4×500 ml; No.4 microplate rotor — 2×2×96 well (4000 rpm, ~2300×g); No.5 angle rotor — 30×0.5 ml (18000 rpm, ~26660×g); No.7 angle rotor — 12×1.5/2 ml (21000 rpm, 30700×g). A wide range of adapters (e.g., 0.2/0.5/1.5/2/5/10/15/50/100/250 ml formats) is available; round‑bottom is standard, (▲) marks sharp‑bottom adapters.

Ordering & delivery

• Brand: BIOBASE
• Model: BKC-TH21RM
• Origin: CHINA
• Delivery time: Within 7 days
• Supply capacity: Factory Direct Supply
