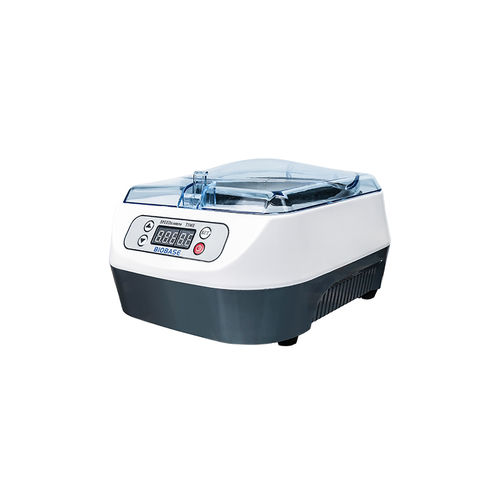

Laboratory mini centrifuge Mini-5

for biologyclinicalfor general purposes

Application:
Mini centrifuges are designed for microcentrifugation tasks in laboratories: rapid removal of reagents from tube walls or caps, short-spin clarification and low-speed centrifugation of microtubes. Suitable for clinical, research and routine lab workflows.

Features:

• Clip-on rotor design for tool-free rotor installation and quick changeover.
• Reliable DC permanent-magnet motor for stable performance.
• Compact footprint, smooth operation and ultra-low noise (≤65 dB(A)).
• Fast acceleration/deceleration for shorter cycle times.
• Compatible with multiple rotors and adapters (1.5/2 ml, 0.2 ml and 0.5 ml formats, PCR tube configurations).

Technical Parameters (table):
Model | Mini-5 (with display) | Mini-7 (with display) | Mini-10 (with display) | Mini-12 (with display)
Max. Speed | 5000 r/min | 7000 r/min | 10000 r/min | 12000 r/min
Max. RCF | 1816 × g | 3560 × g | 7267 × g | 9660 × g
Rotor | 12 × 1.5/2 ml; 4 × 8 × 0.2 ml PCR tube; 4 × 12 × 0.2 ml PCR tube; 0.2 ml and 0.5 ml adapters
Timer Range | 1 s ~ 99 min
Noise | ≤65 dB(A)
Power | 60 W (Mini-5/7/10) / 70 W (Mini-12)
Power Supply | AC 110V ~ 250V, 50/60Hz
External Size (L×W×H) | 230 × 185 × 135 mm
Package Size (L×W×H) | 330 × 320 × 210 mm
Net Weight | 1.8 kg
Gross Weight | 2.8 kg

Characteristics / technical specifications:

• Brand: BIOBASE
• Product origin: CHINA
• Delivery time: Within 7 days
• Supply capacity: Factory direct supply
• Available models: Mini-5 (with display), Mini-7 (with display), Mini-10 (with display), Mini-12 (with display)
• Rotor compatibility: supports 12×1.5/2 ml tubes, PCR tube formats (0.2 ml: 8- or 12-position) and 0.5 ml adapters
• Timer: adjustable from 1 second to 99 minutes
• Low-noise operation: ≤65 dB(A)
• Compact and lightweight: 230×185×135 mm; net weight 1.8 kg
• Wide voltage range: AC 110–250 V, 50/60 Hz
