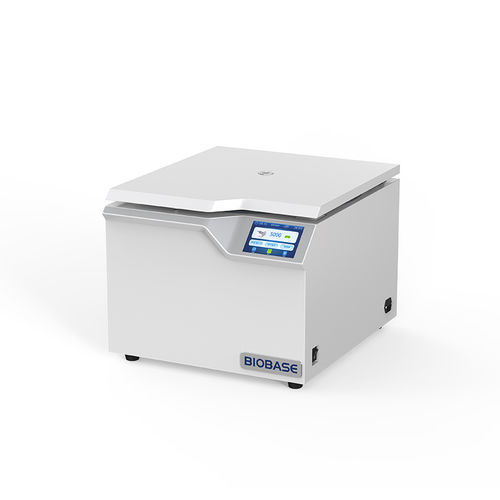

Laboratory centrifuge BKC-TL5B

clinicalfor researchfor sample preparation

Introduction
BKC-TL5B is a benchtop low-speed centrifuge designed for clinical and laboratory use: serum/plasma separation, protein precipitation and urine sediment analysis.

Key features

• Stores up to 100 user programs with automatic recall of the last running program.
• Adjustable acceleration and deceleration with 20 programmable levels for controlled ramp profiles.
• All-metal multi-layer explosion-proof housing for laboratory safety and durability.
• Embedded microprocessor control with DC brushless motor — maintenance-free and smooth operation.
• 5.5-inch touch LCD displays all running parameters in real time; intuitive user interface for fast operation.
• Mechanical and electrical integrated door lock for secure operation.
• Silicone integral sealing ring to limit aerosol escape; excellent shock-absorption system and imbalance protection.
• Comprehensive alarms and protections: self-test, lock, overspeed, imbalance, over-temperature detection and alarm.
• Stores multiple user-defined program groups; optional automatic rotor recognition and language customization.

Technical parameters

• Model: BKC-TL5B
• Brand: BIOBASE
• Max. speed: 5000 rpm
• Max. RCF: 3962 × g
• Max. capacity: 4 × 300 ml
• Speed precision: ±10 rpm
• Time range: 1 s ~ 99 h 59 min / Continuous / Short-span
• Power supply: Standard AC220V, 50/60Hz; Optional AC110V, 50/60Hz
• Noise: ≤60 dB(A)
• Display: 5.5-inch touch LCD
• Drive: DC brushless motor
• External size (L×W×H): 430×565×410 mm
• Package size (L×W×H): 596×736×650 mm
• Net weight: 43 kg
• Gross weight: 55 kg (220V) / 60 kg (110V)

Rotor
Swing rotor
NO. 5M00024; Volume: 48×2/3/4/5/7 ml; Max.Speed: 4000 rpm; Max.RCF: 2952; Adapters: /
NO. 5M00025; Volume: 48×5/7 ml; Max.Speed: 2952 rpm; Max.RCF: 2952; Adapters: 2/3/4 ml blood collection tube
NO. 5M00026; Volume: 72×2/3/4/5/7 ml; Max.Speed: 2808 rpm; Adapters: /
NO. 5M00029; Volume: 16×10/15 ml; Max.Speed: 2957 rpm; Adapters: 2/3/4 ml, 5/7 ml, 15 ml (▲)
NO. 5M00030; Volume: 24×10/15 ml; Max.Speed: 2957 rpm; Adapters: /
NO. 5M00031; Volume: 32×10/15 ml; Max.Speed: 2952 rpm; Adapters: /
NO. 5M00032; Volume: 4×50 ml; Max.Speed: 4500 rpm; Max.RCF: 3962; Adapters: 50 ml (▲), 20 ml, 15 ml, 10 ml, 5 ml, 1.5/2 ml
NO. 5M00033; Volume: 8×50 ml; Max.Speed: 4000 rpm; Max.RCF: 2952; Adapters: /
NO. 5M00034; Volume: 4×100 ml; Max.Speed: 4500 rpm; Max.RCF: 3962; Adapters: 16×2/3/4 ml, 16×5/7 ml
NO. 5M00036; Volume: 8×100 ml; Max.Speed: 4000 rpm; Max.RCF: 3077; Adapters: 32×2/3/4 ml, 32×5/7 ml
NO. 5M00038; Volume: 4×250 ml (flat bottom); Max.Speed: 2780 rpm; Max.RCF: 3077; Adapters: multiple combinations (see spec)
NO. 5M00053; Volume: 4×250 ml (biosafety); Max.Speed: 3041 rpm
NO. 5M00058; Volume: 4×300 ml; Max.Speed: 3220 rpm; Max.RCF: 3077

Microplate rotor
NO. 5M00045; Volume: 2×2×96 well; Max.Speed: 2361 rpm

Angle rotor
NO. 5M00072; Volume: 12×20 ml; Max.Speed: 5000 rpm; Max.RCF: 3516; Adapters: 15 ml, 10 ml, 5 ml, 1.5/2 ml
NO. 5M00073; Volume: 12×15 ml; Max.Speed: 3354 rpm; Max.RCF: 3354; Adapters: 1.5/2 ml, 2/3/4 ml blood collection tube
NO. 5M00074; Volume: 8×15/20 ml; Max.Speed: 2655 rpm
NO. 5M00069; Volume: 24×10/15 ml; Max.Speed: 3494 rpm; Adapters: 2/3/4 ml, 5/7 ml, 15 ml (▲)
NO. 5M00075; Volume: 24×10 ml; Max.Speed: 3354 rpm; Adapters: 1.5/2 ml, 2/3/4 ml
NO. 5M00076; Volume: 18×10 ml; Max.Speed: 3354 rpm
NO. 5M00077; Volume: 12×10 ml; Max.Speed: 3354 rpm
NO. 5M00084; Volume: 6×50 ml; Max.Speed: 2711 rpm; Adapters: 50 ml (▲), 20 ml, 15 ml, 10 ml, 5 ml, 1.5/2 ml

Note: Mark (●) or no mark = round-bottom tube; mark (▲) = sharp-bottom tube.

Applications

• Clinical laboratories: blood serum/plasma processing.
• Biochemistry and research labs: protein precipitation and sample preparation.
• Routine urine sediment analysis in diagnostic labs.
