Laboratory centrifuge BKC-TH21RS

clinicalmultipurposeblood

Overview

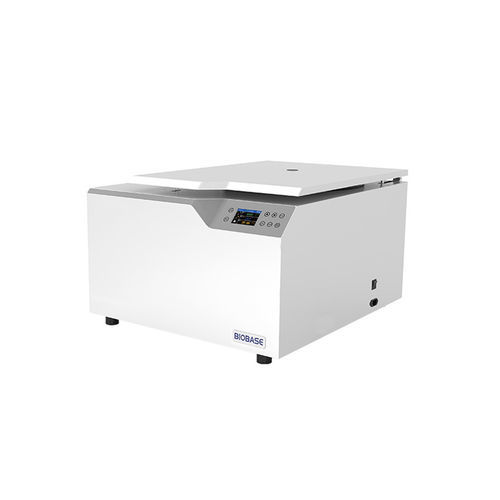

The BKC-TH21RS is a refrigerated high‑speed benchtop centrifuge designed for laboratory and clinical applications that require flexible rotor configurations and precise temperature control.

Key information

• Brand: BIOBASE
• Product origin: CHINA
• Delivery time: Within 7 days
• Supply capacity: Factory direct supply
• Model: BKC-TH21RS

Introduction
The unit accepts a wide range of angle and swing rotors and can be fitted with custom adapters to accommodate tubes from 0.1 ml to 500 ml, enabling multi‑purpose use. The integrated refrigeration system allows accurate temperature regulation during runs to protect temperature‑sensitive samples and improve separation efficiency.

Features

• Full metal construction with multi‑layer explosion protection for operator safety and long service life.
• High‑strength aluminum alloy rotors, compatible with high‑temperature and high‑pressure disinfection.
• Embedded microprocessor control with brushless DC motor drive: maintenance‑free, good shock absorption and stable operation.
• 5‑inch LCD screen displaying parameters in real time; intuitive and simple user interface.
• Electromechanical integrated door lock for secure operation.
• Integral food‑grade silicone sealing ring to prevent aerosol leakage and ensure operator safety.
• CFC‑free compressor unit with environmentally friendly refrigerant R404a; adjustable temperature range during operation: -20℃ to +40℃; rapid cooling and standby cooling to maintain set temperature.
• Self‑test and alarm functions for blockage, overspeed, overtemperature and other fault conditions; excellent vibration damping.
• Multiple user‑defined program groups; easy access to common programs and boot recall of the last program.
• Optional automatic rotor recognition.

Technical parameters

• Model: BKC-TH21RS
• Max. speed: 21000 rpm (accuracy ±20 rpm)
• Max. RCF: 31308 xg
• Max. capacity: 4×500 ml (depending on rotor)
• Refrigeration: CFC‑free compressor, R404a
• Timing range: 1 s–99 min 59 s / Continuous / Short span
• Temperature range: -20℃ to +40℃ (accuracy ±1℃)
• Noise: ≤65 dB
• Power supply: Standard AC220V 50/60Hz; optional AC110V 50/60Hz
• Rated power: 1200 W
• External dimensions (L×W×H): 785×670×445 mm
• Net weight: 105 kg; Gross weight: 170 kg (220V), 180 kg (110V)

Rotors (selection)
Examples of compatible rotors and typical limits:
21M0001 — Angle rotor — 12×1.5/2 ml — 21000 rpm — 31308 xg — adapters: 0.2 ml, 0.5 ml
21M0002 — Angle rotor — 18×1.5/2 ml — 18000 rpm — 27167 xg — adapters: 0.2 ml, 0.5 ml
21M0003 — Angle rotor — 24×1.5/2 ml — 16000 rpm — 25759 xg — adapters: 0.2 ml, 0.5 ml
21M0010 — Angle rotor — 10×5 ml — 16000 rpm — 20035 xg — adapters: 1.5/2 ml
21M0036 — Swing rotor — 4×500 ml (flat bottom) — 4000 rpm — 3130 xg — multiple tube adapter options
21M0034-1 — Swing rotor (biosafety) — 4×250 ml — 4000 rpm — 3578 xg — wide adapter compatibility

Remark
Some rotors support round‑bottom (●) or sharp‑bottom (▲) tubes; full rotor and adapter compatibility is provided in the technical catalogue or product PDF. Contact supplier for custom adapters and automatic rotor recognition options.
