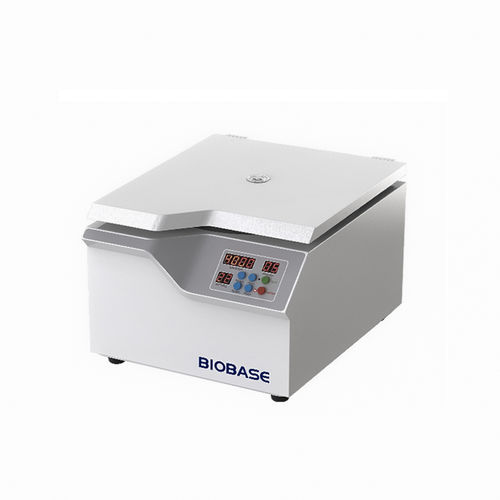

Laboratory centrifuge BKC-TL4B

for productionfor researchfor sample preparation

Product information
Brand: BIOBASE
Origin: CHINA
Delivery time: Within 7 days
Supply capacity: Direct factory supply
Model: BKC-TL4B

Introduction:
BKC-TL4B is a microcomputer-controlled table top low speed automatic balance centrifuge. The unit features a steel body with a plastic-coated surface for high rigidity and strength, combined with a compact modern design. The centrifuge offers low noise, low temperature rise, and reliable safety performance. It is driven by a maintenance-free DC brushless motor and controlled by a microcomputer, with a protective lid for safer and more convenient operation.

Application:
Suitable for separation of particles with different densities at a single temperature in scientific research laboratories and in production environments such as radioimmunology and biochemistry.

Features:

• All-metal construction with multilayer explosion-proof design for safe and stable operation.
• Embedded microprocessor control and DC brushless motor drive: maintenance-free and smooth operation.
• Push-button programming and digital tube display showing all operating parameters in real time for intuitive operation.
• Alarm monitoring function for real-time lock and motor status monitoring to ensure safe operation.
• Adjustable centrifuge speed and time with real-time display of centrifugal force (RCF).
• Compatible with a variety of angle rotors and adapters to meet different test requirements.

Technical Parameters:

• Model: BKC-TL4B
• Max. Capacity: 4×100 ml
• Max. Speed: 4000 rpm
• Max. RCF: 2250×g
• Timing Range: 1 s ~ 99 min
• Speed Precision: ±10 rpm
• Noise: ≤60 dB
• Power Consumption: 150 W
• Power Supply: AC110 or 220 V, 50/60 Hz
• External Size (L×W×H): 340×430×278 mm
• Net Weight: 20 kg
• Package Size (L×W×H): 476×566×436 mm
• Gross Weight: 24 kg

Rotor:
4M0001 — Angle rotor; Max. Speed: 4000 rpm; Max. RCF: 2058 xg; Capacity: 6×50 ml; Adapters: 6×50 ml(▲), 6×20 ml, 6×15 ml, 6×10 ml, 6×5 ml, 6×1.5/2 ml
4M0002 — Angle rotor; Max. Speed: 2058 rpm; Max. RCF: 2058 xg; Capacity: 4×50 ml; Adapters: 4×50 ml(▲), 4×20 ml, 4×15 ml, 4×10 ml, 4×5 ml, 4×1.5/2 ml
4M0003 — Angle rotor; Max. Speed: 2250 rpm; Max. RCF: 2250 xg; Capacity: 12×20 ml; Adapters: 12×15 ml, 12×10 ml, 12×5 ml, 12×1.5/2 ml
4M0004 — Angle rotor; Max. Speed: 2147 rpm; Max. RCF: 2147 xg; Capacity: 12×15 ml; Adapters: 12×1.5/2 ml
4M0005 — Angle rotor; Max. Speed: 1700 rpm; Max. RCF: 1700 xg; Capacity: 8×15 ml; Adapters: 8×1.5/2 ml
4M0006 — Angle rotor; Max. Speed: 2147 rpm; Max. RCF: 2147 xg; Capacity: 24×10 ml; Adapters: 24×1.5/2 ml, 24×2/3/4 ml blood collection tubes
4M0007 — Angle rotor; Max. Speed: 2147 rpm; Max. RCF: 2147 xg; Capacity: 18×10 ml; Adapters: 18×1.5/2 ml, 18×2/3/4 ml blood collection tubes
4M0008 — Angle rotor; Max. Speed: 2147 rpm; Max. RCF: 2147 xg; Capacity: 12×10 ml; Adapters: 12×1.5/2 ml, 12×2/3/4 ml blood collection tubes
4M0009 — Angle rotor; Max. Speed: 1127 rpm; Max. RCF: 1127 xg; Capacity: 12×1.5/2 ml; Adapters: 12×0.5 ml, 12×0.2 ml
4M0010 — Angle rotor; Max. Speed: 2058 rpm; Max. RCF: 2058 xg; Capacity: 4×100 ml
4M0016 — Angle rotor; Max. Speed: 1681 rpm; Max. RCF: 1681 xg; Capacity: 12×5/7 ml; Adapters: 12×2/3/4 ml blood collection tubes
4M0017 — Angle rotor; Max. Speed: 2039 rpm; Max. RCF: 2039 xg; Capacity: 30×5/7 ml; Adapters: 30×2/3/4 ml blood collection tubes
4M0018 — Angle rotor; Max. Speed: 1073 rpm; Max. RCF: 1073 xg; Capacity: 2×8×0.2 ml PCR
4M0021 — Angle rotor; Max. Speed: 1342 rpm; Max. RCF: 1342 xg; Capacity: 4×8×0.2 ml PCR

Note:
Tubes marked (▲) are sharp-bottom tubes.

Characteristics / Specifications:

• Device type: Microcomputer-controlled table top low speed centrifuge
• Housing material: Steel with plastic-coated surface
• Drive: Maintenance-free DC brushless motor
• Control: Microprocessor/microcomputer
• Safety features: Automatic balancing, alarm monitoring, protective lid
• Display: Digital real-time display of operating parameters
• Versatility: Supports multiple angle rotors and adapters for various tube formats
