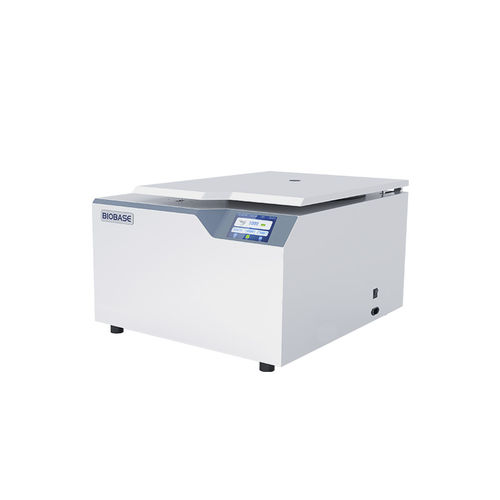

Laboratory centrifuge BKC-TL6CR

biologicalfor hematologyclinical

Introduction:
The instrument has been widely applied to experiments in clinical, biological, genetic engineering and immunology fields; applicable to radioimmunoassay separation, water treatment, biological and chemical sample processing and blood handling.

Features:

• Adopts CFC-free compressor unit and environmentally friendly refrigerant R404a; wide temperature range -20°C to +40°C, temperature adjustable during running. Rapid refrigeration and standby cooling maintain the set temperature.
• Full metal structure with multi-layer explosion protection to ensure operator safety and long durability.
• Embedded microprocessor control and DC brushless motor drive: maintenance-free, good shock absorption, stable operation.
• 5-inch LCD touch screen supporting Chinese and English switching (other languages customizable); real-time display of all parameters; intuitive operation interface.
• Electromechanical integrated door lock for safe and reliable operation.
• Integral food-grade silicone sealing ring to prevent aerosol overflow and ensure operator safety.
• Self-test, door-lock, overspeed, overtemperature and other alarm functions; excellent shock absorption and smooth motor operation.
• Multiple user-defined program groups; easy access to common programs; boots to the last used program.
• Equipped with a variety of swing and angle rotors and adapters; suitable for 0.1ml–500ml centrifugal tubes for multipurpose use.
• Optional automatic rotor recognition.

Technical Parameters:
Model: BKC-TL6CR
Max. Speed: 6000rpm
Speed Accuracy: ±10rpm
Max. RCF: 5290×g
Max. Volume: 4×500ml
Timing Range: 1s~99h59min/Continuous/Short-span
Temp. Range: -20°C~+40°C
Temp. Accuracy: ±1℃
Noise: ≤65dB
Power Supply: Standard AC220V, 50/60Hz; Optional AC110V, 50/60Hz
External Size (L×W×H): 785×670×445mm
Package Size (L×W×H): 815×915×850mm
Net Weight: 105kg
Gross Weight: 170kg (220V), 180kg (110V)

Rotors:
NO. 5M00024 | Swing Rotor | Volume: 48×2/3/4/5/7ml (blood collection tube) | Max. Speed: 4000rpm | Max. RCF: 2952 | Adapters: /
NO. 5M00025 | Swing Rotor | Volume: 48×5/7ml (blood collection tube) | Max. Speed: 2952rpm | Max. RCF: 2952 | Adapters: 2/3/4ml blood collection tube adapters
NO. 5M00026 | Swing Rotor | Volume: 72×2/3/4/5/7ml (blood collection tube) | Max. Speed: 2808rpm | Max. RCF: / | Adapters: /
NO. 5M00027 | Swing Rotor | Volume: 96×2/3/4/5/7ml (blood collection tube) | Max. Speed: 3104rpm | Max. RCF: / | Adapters: /
NO. 5M00029 | Swing Rotor | Volume: 16×10/15ml | Max. Speed: 2957rpm | Max. RCF: / | Adapters: 2/3/4ml blood collection tube, 5/7ml blood collection tube, 15ml(▲)
NO. 5M00030 | Swing Rotor | Volume: 24×10/15ml | Max. Speed: 2957rpm | Max. RCF: / | Adapters: /
NO. 5M00031 | Swing Rotor | Volume: 32×10/15ml | Max. Speed: 2952rpm | Max. RCF: / | Adapters: /
NO. 5M00056 | Swing Rotor | Volume: 36×10ml | Max. Speed: 2862rpm | Max. RCF: / | Adapters: /
NO. 5M00032 | Swing Rotor | Volume: 4×50ml | Max. Speed: 5200rpm | Max. RCF: 5290 | Adapters: 50ml(▲), 20ml, 15ml, 10ml, 5ml, 1.5/2ml
NO. 5M00033 | Swing Rotor | Volume: 8×50ml | Max. Speed: 4000rpm | Max. RCF: 2952 | Adapters: /
NO. 5M00034 | Swing Rotor | Volume: 4×100ml | Max. Speed: 5200rpm | Max. RCF: 5290 | Adapters: 16×2/3/4ml blood collection tube, 16×5/7ml blood collection tube
NO. 5M00036 | Swing Rotor | Volume: 8×100ml | Max. Speed: 4000rpm | Max. RCF: 3077 | Adapters: 32×2/3/4ml blood collection tube, 32×5/7ml blood collection tube
NO. 5M00037 | Swing Rotor | Volume: 4×250ml(▲) | Max. Speed: 3578rpm | Max. RCF: / | Adapters: /
NO. 5M00038 | Swing Rotor | Volume: 4×250ml (flat bottom) | Max. Speed: 2780rpm | Max. RCF: / | Adapters: multiple tube sizes (see rotor adapters)
NO. 5M00053 | Swing Rotor | Volume: 4×250ml (biosafety) | Max. Speed: 3041rpm | Max. RCF: / | Adapters: /
NO. 5M00058 | Swing Rotor | Volume: 4×300ml | Max. Speed: 3220rpm | Max. RCF: / | Adapters: /
NO. 5M00039 | Swing Rotor | Volume: 4×500ml (flat bottom) | Max. Speed: 3130rpm | Max. RCF: / | Adapters: extensive tube formats (see rotor adapters)
NO. 5M00054 | Swing Rotor | Volume: 4×500ml (biosafety) | Max. Speed: 3399rpm | Max. RCF: / | Adapters: /
NO. 5M00046 | Auto Uncap Swing Rotor | Volume: 48×2/3/4/5/7ml (vacuum blood collection tube, auto uncap) | Max. Speed: 3220rpm | Max. RCF: / | Adapters: /
NO. 5M00045 | Swing Microplate Rotor | Volume: 2×2×96 well | Max. Speed: 2361rpm | Max. RCF: / | Adapters: /
NO. 5M00060 | PRP Swing Rotor | Volume: 4×10ml conventional syringe | Max. Speed: 4300rpm | Max. RCF: 3401 | Adapters: /
NO. 5M00061 | PRP Swing Rotor | Volume: 4×20ml conventional syringe | Max. Speed: 3649rpm | Max. RCF: / | Adapters: /
NO. 5M00035 | PRP Swing Rotor | Volume: 4×50ml conventional syringe | Max. Speed: 4000rpm | Max. RCF: 3309 | Adapters: /
NO. 5M00072 | Angle Rotor | Volume: 12×20ml | Max. Speed: 5000rpm | Max. RCF: 3516 | Adapters: 15ml, 10ml, 5ml, 1.5ml
NO. 5M00073 | Angle Rotor | Volume: 12×15ml | Max. Speed: 3354rpm | Max. RCF: / | Adapters: 1.5/2ml, 2/3/4ml vacuum blood collection tube
NO. 5M00074 | Angle Rotor | Volume: 8×15/20ml | Max. Speed: 2655rpm | Max. RCF: / | Adapters: /
NO. 5M00075 | Angle Rotor | Volume: 24×10ml | Max. Speed: 3354rpm | Max. RCF: / | Adapters: 1.5ml, 2/3/4ml vacuum blood collection tube
NO. 5M00076 | Angle Rotor | Volume: 18×10ml | Max. Speed: 3354rpm | Max. RCF: / | Adapters: /
NO. 5M00077 | Angle Rotor | Volume: 12×10ml | Max. Speed: 3354rpm | Max. RCF: / | Adapters: /
NO. 5M00083 | Angle Rotor | Volume: 12×10/15ml | Max. Speed: 6000rpm | Max. RCF: 5111 | Adapters: 2/3/4ml blood collection tube, 5/7ml blood collection tube, 15ml(▲)
NO. 5M00069 | Angle Rotor | Volume: 24×10/15ml | Max. Speed: 5031rpm | Max. RCF: / | Adapters: /
NO. 5M00084 | Angle Rotor | Volume: 6×50ml | Max. Speed: 3904rpm | Max. RCF: / | Adapters: 50ml(▲), 20ml, 15ml, 10ml, 5ml, 1.5ml

Note:
Tubes marked (●) or without mark indicate round-bottom tubes; tubes marked (▲) indicate sharp-bottom tubes.

Characteristics / Specifications:

• Model: BKC-TL6CR
• Max. Speed: 6000rpm
• Max. RCF: 5290×g
• Max. Volume: 4×500ml
• Timing Range: 1s~99h59min / Continuous / Short-span
• Temperature Range: -20°C ~ +40°C
• Temperature Accuracy: ±1℃
• Speed Accuracy: ±10rpm
• Noise Level: ≤65dB
• Power Supply: Standard AC220V 50/60Hz; Optional AC110V 50/60Hz
• External Size (L×W×H): 785×670×445mm
• Package Size (L×W×H): 815×915×850mm
• Net Weight: 105kg
• Gross Weight: 170kg (220V) / 180kg (110V)
