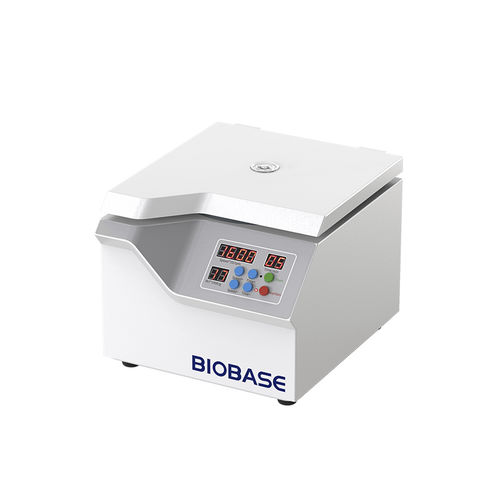

Laboratory centrifuge BKC-TH16MB

for biologyclinicalfor blood banks

Introduction
Centrifuge for rapid separation, concentration and purification of mixed substances with differing sedimentation coefficients using centrifugal force from high-speed rotation. Designed for pre-analytical processing of human and biological samples in clinical and research laboratories.

Application
The BKC-TH16MB tabletop high-speed centrifuge performs high-purity separation and extraction for blood, cells, proteins, enzymes, viruses and similar biological materials used in diagnostics, blood banks, biomedical research and sample preparation workflows.

Features

• Embedded microprocessor control with button programming and LED display for speed and time settings.
• DC brushless motor drive for maintenance-free, stable operation.
• Electromechanical integrated door lock with real-time door and motor status detection for safe operation.
• Integral silicone sealing ring to reduce aerosol release and enhance operator safety.
• All-steel chassis with plastic-sprayed outer shell for corrosion resistance and easy cleaning.
• Compact footprint for space-constrained laboratory benches.
• Compatible with a range of angle rotors and adapters for 0.2 ml–2 ml tubes.

Technical Parameters
Model: BKC-TH16MB
Max. Capacity: 12×2 ml
Max. Speed: 16000 rpm
Max. RCF: 18032×g
Timing Range: 1 s ~ 99 min
Speed Precision: ±30 rpm
Noise Level: ≤65 dB
Power Consumption: 150 W
Power Supply: AC 220 V / 110 V, 50/60 Hz
External Size (L×W×H) mm: 270×335×236
Package Size (L×W×H) mm: 386×456×381
Net Weight: 18 kg; Gross Weight: 21 kg

Rotor
16M0001 — Angle rotor — 12×1.5/2 ml — Max speed: 16000 rpm — Max RCF: 18032×g — Adapters: 0.2 ml, 0.5 ml
16M0002 — Angle rotor (PCR) — 2×8×0.2 ml — Max speed: 15000 rpm — Max RCF: 15093×g
16M0003 — Angle rotor (PCR) — 4×8×0.2 ml — Max speed: 13000 rpm — Max RCF: 14171×g

Specifications

• Brand: BIOBASE
• Model: BKC-TH16MB
• Drive: DC brushless motor
• Control: Embedded microprocessor, LED display
• Safety features: Electromechanical door lock, silicone sealing ring, real-time status detection
• Compatible tube sizes: 0.2 ml, 0.5 ml, 1.5/2 ml and PCR tube configurations
