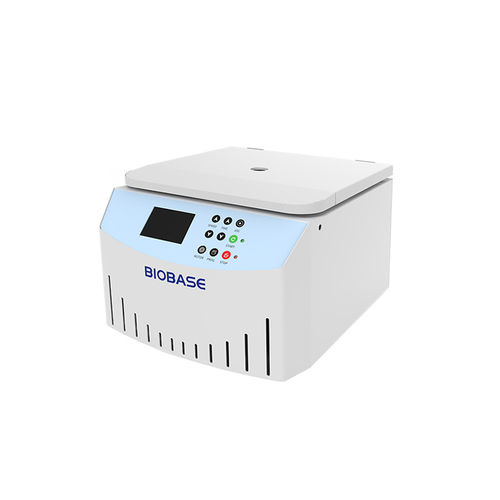

Laboratory centrifuge BKC-TL4MII

for biologyfor productionfor research

Introduction
BIOBASE BKC-TL4MII is a microcomputer-controlled tabletop low-speed automatic balancing centrifuge. The steel body with a plastic-sprayed finish provides rigidity and strength. The unit is designed for low noise, low temperature rise, safety and reliable operation.

Application
Suitable for radioimmunity, biochemistry, research laboratories and production units for separation and processing of particles or samples with different densities.

Features

• LCD display showing real-time operating parameters.
• Stores and recalls up to 20 operating programs.
• Fine adjustment: speed step 1 rpm, time step 1 s; automatic recovery after power failure.
• Adjustable parameters during operation for fast setup changes.
• 16 acceleration/deceleration rates selectable for controlled ramps.
• Program memory automatically retains last-run settings and restores them on restart.

Technical Parameters
Model: BKC-TL4MII
Max speed: 4000 rpm
Max RCF: 2250×g
Max capacity: 4×100 ml (depends on rotor)
Speed precision: ±20 rpm
Timing range: 1 s – 999 min
Noise: ≤65 dB
Power consumption: 250 W
Power supply: AC110–220V, 50/60 Hz
External size (W×D×H): 430×350×270 mm
Package size (W×D×H): 490×420×325 mm
Net weight: 19 kg
Gross weight: 23 kg

Rotor (selected options)
No.1 — Angle rotor — Capacity: 12×5 ml — Max speed: 4000 rpm — Max RCF: 2150×g — Alternate: 12×2 ml
No.2 — Angle rotor — Capacity: 30×5 ml — Max speed: 2250 rpm — Max RCF: 2250×g — Alternate: 30×2 ml
No.3 — Angle rotor — Capacity: 12×10 ml — Max speed: 2200 rpm — Max RCF: 2200×g — Alternate: 12×5 ml
No.4 — Angle rotor — Capacity: 18×10 ml — Max speed: 2250 rpm — Max RCF: 2250×g — Alternate: 18×5 ml
No.5 — Angle rotor — Capacity: 24×10 ml — Max speed: 2250 rpm — Max RCF: 2250×g — Alternate: 24×5 ml
No.6 — Angle rotor — Capacity: 8×15 ml — Max speed: 2100 rpm — Max RCF: 2100×g
No.7 — Angle rotor — Capacity: 12×15 ml — Max speed: 2200 rpm — Max RCF: 2200×g
No.8 — Angle rotor — Capacity: 12×20 ml — Max speed: 2150 rpm — Max RCF: 2150×g
No.9 — Angle rotor — Capacity: 4×50 ml — Max speed: 2100 rpm — Max RCF: 2100×g
No.10 — Angle rotor — Capacity: 6×50 ml — Max speed: 2100 rpm — Max RCF: 2100×g
No.11 — Angle rotor — Capacity: 4×100 ml — Max speed: 2100 rpm — Max RCF: 2100×g

Characteristics / Technical specifications

• Brand: BIOBASE
• Model: BKC-TL4MII
• Product origin: CHINA
• Delivery time: Within 7 days
• Supply capacity: Factory direct supply
• Max speed: 4000 rpm
• Max RCF: 2250×g
• Max capacity: 4×100 ml
• Speed precision: ±20 rpm
• Timing range: 1 s – 999 min
• Noise: ≤65 dB
• Power consumption: 250 W
• Power supply: AC110–220V, 50/60 Hz
• External size (W×D×H): 430×350×270 mm
• Package size (W×D×H): 490×420×325 mm
• Net weight: 19 kg
• Gross weight: 23 kg
