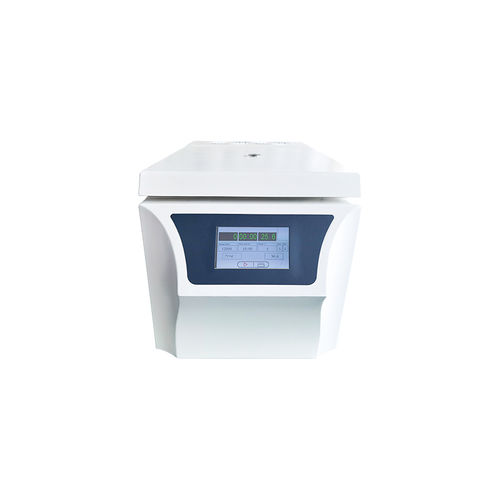

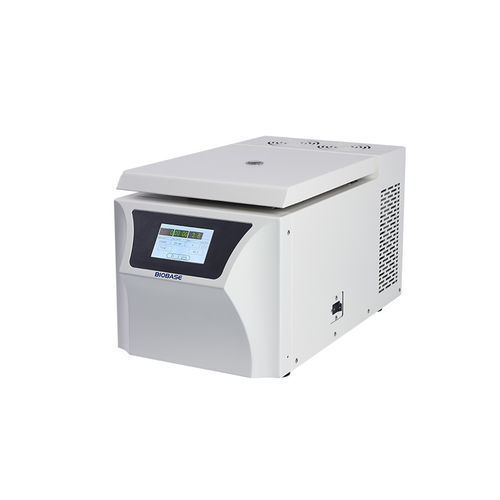

Medical centrifuge BKC-TH16RD

laboratoryclinicalfor molecular biology

Product Overview

• Brand: BIOBASE
• Model: BKC-TH16RD
• Type: Tabletop refrigerated centrifuge for molecular biology, clinical and agricultural labs
• Key specs: Max speed 16500 rpm; Max RCF 21380×g; Max capacity 4×100 mL

Application
Suitable for experiments in biology, medical science and agriculture. Designed for procedures involving nucleic acids, proteins and PCR sample preparation in research and diagnostic laboratories.

Features

• 5-inch high-definition touchscreen for intuitive control and clear status display.
• Automatic identification of 7 rotor types to prevent risks from incorrect rotor use.
• Programmable acceleration (9 levels) and deceleration (10 levels) to reduce secondary sedimentation and improve separation quality.
• Stores up to 15 user-adjustable programs for repeatable workflows.
• AC frequency-conversion motor with precise speed control; freon-free compressor from a known brand for reliable cooling.
• Comprehensive protections: overspeed, door lock and imbalance protection to ensure operator and instrument safety.
• Selectable display and input in RPM or RCF for process flexibility.
• Low noise operation at maximum speed.
• Airtight rotor design to minimize aerosol generation.

Technical Parameters

• Model: BKC-TH16RD
• Max. Speed: 16500 rpm
• Max. RCF: 21380 × g
• Max. Capacity: 4 × 100 mL
• Motor: AC frequency conversion motor
• Speed Precision: ±30 rpm
• Time Range: 1 min – 99 min 59 s; Continuous: Hold
• Temperature Range: -20℃ – +40℃; Accuracy: ±1.0℃
• Power Supply: AC220 ±22V 50/60Hz (Standard); AC110V 60Hz (Optional)
• Noise: <55 dB(A)
• External Size (W×D×H): 350 × 662 × 367 mm
• Net Weight: 50 kg; Gross Weight: 73 kg

Rotor Options (summary)

• No.1 Angle Rotor — Max Speed: 16500 rpm; Max RCF: 18400 × g; Capacity: 12 × 1.5/2.0 mL; Tube: Φ10 × 42 mm
• No.2 Angle Rotor — Max Speed: 15000 rpm; Max RCF: 21380 × g; Capacity: 24 × 1.5/2.0 mL; Tube: Φ10 × 42 mm
• No.3 Angle Rotor — Max Speed: 13000 rpm; Max RCF: 19080 × g; Capacity: 48 × 0.5 mL; Tube: Φ8 × 32 mm
• No.4 Angle Rotor — Max Speed: 13000 rpm; Max RCF: 19270 × g; Capacity: 32 × 1.5/2.0 mL; Tube: Φ10 × 42 mm
• No.5 Angle Rotor — Max Speed: 12000 rpm; Max RCF: 10100 × g; Capacity: 12 × 5 mL; Tube: Φ13 × 53 mm
• No.6 Angle Rotor — Max Speed: 12500 rpm; Max RCF: 16060 × g; Capacity: 12 × 10 mL; Tube: Φ16 × 85 mm
• No.7 Angle Rotor — Max Speed: 12000 rpm; Max RCF: 15130 × g; Capacity: 6 × 50 mL (round-bottom); Tube: Φ29 × 106 mm
• No.8 Angle Rotor — Max Speed: 12000 rpm; Max RCF: 15130 × g; Capacity: 6 × 50 mL (sharp-bottom); Tube: Φ29 × 116 mm
• No.9 Angle Rotor — Max Speed: 10000 rpm; Max RCF: 10620 × g; Capacity: 4 × 100 mL; Tube: Φ38 × 119 mm
• No.10 Angle Rotor — Max Speed: 12000 rpm; Max RCF: 15370 × g; Capacity: 8 × 15 mL (sharp-bottom); Tube: Φ17 × 121 mm
• No.11 Microplate — Max Speed: 4000 rpm; Max RCF: 2000 × g; Capacity: 2 × 2 × 48-well; Tube: Microplate
• No.12 Angle Rotor — Max Speed: 13000 rpm; Max RCF: 16200 × g; Capacity: 6 × 8 × 0.2 mL PCR tubes

Technical Specifications

• Model: BKC-TH16RD
• Max Speed: 16500 rpm
• Max RCF: 21380 × g
• Max Capacity: 4 × 100 mL
• Temperature Range: -20℃ to +40℃ (±1.0℃)
• Speed Accuracy: ±30 rpm
• Time Range: 1 min – 99 min 59 s; Continuous: Hold
• Power: AC220 ±22V 50/60Hz (standard); AC110V 60Hz (optional)
• Noise: <55 dB(A)
• Dimensions: 350 × 662 × 367 mm
• Net Weight: 50 kg; Gross Weight: 73 kg
