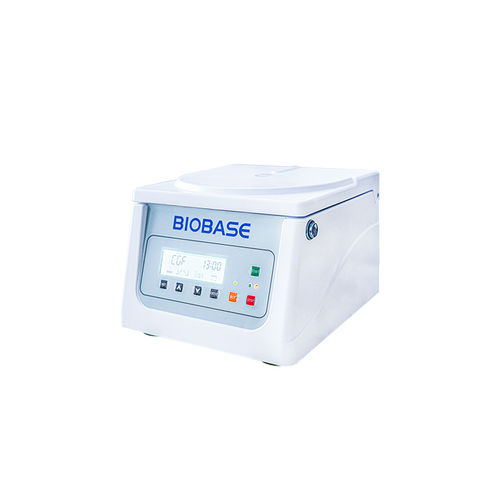

Dental laboratory centrifuge BKC-TL4CII

clinicallaboratorymedical

Introduction
The BKC-TL4CII is a tabletop low-speed centrifuge designed for routine separation of blood samples in clinical laboratories, hospital labs, dental clinics and similar medical or laboratory environments. It offers programmable protocols for CGF/PRF workflows and supports multiple rotor options.

Key features

• Dedicated CGF program plus presets for A-PRF, I-PRF and PGRF.
• Compact footprint and straightforward push-button operation for routine lab use.
• Plastic housing with explosion-proof protection.
• Ten selectable acceleration/deceleration speed levels.
• Brushless DC motor for stable rotation, low vibration and low noise.
• Real-time display of operating parameters and simple programming interface.
• Adjustable speed, time and ramp; centrifugal force (RCF) can be checked during operation.
• Microcomputer control with automatic protections (lid lock, overspeed protection, fault display).

Technical parameters

• Model: BKC-TL4CII
• Max. speed: 4000 rpm
• Max. RCF: 1880×g
• Max. capacity: 8 × 20 ml (compatible with 8×20 ml and 8×15 ml rotors)
• Speed precision: ±20 rpm
• Time range: 1 s – 99 min
• Power supply: AC110–220V, 50/60Hz
• Power consumption: 65 W
• Noise level: ≤55 dB(A)
• External dimensions (L×W×H): 317×275×210 mm
• Package size (L×W×H): 370×310×250 mm
• Net/Gross weight: 6 kg / 8.5 kg

Rotor

• No.1 — Angle rotor; Capacity: 8×20 ml; Max. speed: 4000 rpm; Max. RCF: 1880×g
• No.2 — Angle rotor; Capacity: 8×15 ml; Max. speed: 4000 rpm; Max. RCF: 1840×g

Program selection
CGF (4-stage): speeds 2600 / 2300 / 2600 / 2600 rpm — times 2 / 4 / 4 / 4 min. A-PRF: 2850 rpm — 3 min. I-PRF: 2450 rpm — 4 min. PGRF: 3100 rpm — 3 min.

Product information / Specifications

• Brand: BIOBASE
• Product origin: CHINA
• Delivery time: Within 7 days
• Supply capacity: Factory direct supply
• Integrated programs: CGF, A-PRF, I-PRF, PGRF
