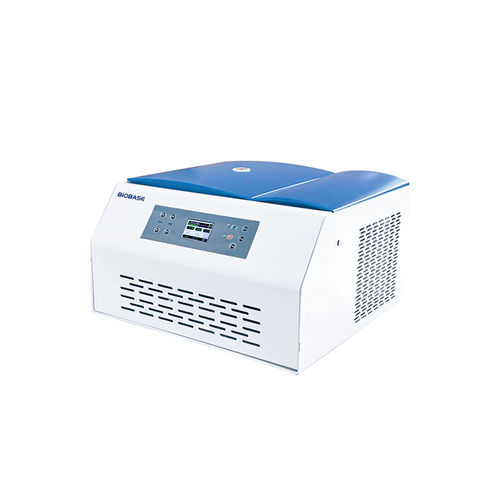

Laboratory centrifuge BKC-TH16RM

for biologyclinicalfor molecular biology

Overview
The BIOBASE Table-top High-Speed Refrigerated Centrifuge BKC-TH16RM is a compact refrigerated bench centrifuge engineered for rapid separation and sample preparation in clinical, molecular biology and biochemistry laboratories. It combines precise temperature control, high RCF and broad rotor compatibility for routine and research workflows.

Key features

• Embedded microprocessor control: precise regulation of speed, time, temperature and RCF.
• Push-button programming with real-time display of operating parameters for intuitive operation.
• High-quality rubber door seal and all-steel body with stainless steel centrifugal chamber for reliable containment.
• Imported fluorine-free compressor (R404A) for stable refrigeration down to -20 ℃.
• Safety systems: lid cover protection, overspeed protection and advanced electronic unbalance detection.
• Wide rotor compatibility and interchangeable adapters for tubes from 0.2 ml to 100 ml.

Technical specifications

• Model: BKC-TH16RM
• Max speed: 16000 rpm
• Max RCF: 20878 × g
• Max capacity: 6 × 100 ml
• Speed precision: ±1% or ±30 rpm
• Timing range: 1 s ~ 999 min
• Temperature range: -20 ~ 40 ℃
• Noise: ≤65 dB
• Power consumption: 1000 W
• Power supply: AC110~220V, 50/60Hz
• External size (W×D×H): 600 × 560 × 380 mm
• Net weight: 76 kg

Compatible rotors

• No.1 — Angle rotor — Capacity: 30 × 0.5 ml — Max speed: 15000 rpm — Max RCF: 18620 × g — Adapter: /
• No.2 — Angle rotor — Capacity: 40 × 0.5 ml — Max speed: 14000 rpm — Max RCF: 19940 × g — Adapter: /
• No.3 — Angle rotor — Capacity: 12 × 1.5/2 ml — Max speed: 16000 rpm — Max RCF: 17750 × g — Adapter: 12×0.5 ml, 12×0.2 ml
• No.4 — Angle rotor — Capacity: 20 × 1.5/2 ml — Max speed: 15000 rpm — Max RCF: 17860 × g — Adapter: 20×0.5 ml, 20×0.2 ml
• No.5 — Angle rotor — Capacity: 24 × 1.5/2 ml — Max speed: 15000 rpm — Max RCF: 20878 × g — Adapter: 24×0.5 ml, 24×0.2 ml
• No.6 — Angle rotor — Capacity: 30 × 1.5/2 ml — Max speed: 13500 rpm — Max RCF: 18950 × g — Adapter: 30×0.5 ml, 30×0.2 ml
• No.7 — Angle rotor — Capacity: 48 × 1.5/2 ml — Max speed: 11000 rpm — Max RCF: 12720 × g — Adapter: 48×0.5 ml, 48×0.2 ml
• No.8 — Angle rotor — Capacity: 10 × 5 ml — Max speed: 16000 rpm — Max RCF: 17800 × g — Adapter: /
• No.9 — Angle rotor — Capacity: 6 × 10 ml — Max speed: 12000 rpm — Max RCF: 14000 × g — Adapter: /
• No.10 — Angle rotor — Capacity: 12 × 10 ml — Max speed: 12000 rpm — Max RCF: 14510 × g — Adapter: /
• No.11 — Angle rotor — Capacity: 6 × 50 ml — Max speed: 10000 rpm — Max RCF: 11140 × g — Adapter: /
• No.12 — Angle rotor — Capacity: 6 × 50 ml (▲) — Max speed: 10000 rpm — Max RCF: 11140 × g — Adapter: /
• No.13 — Angle rotor — Capacity: 6 × 100 ml — Max speed: 8000 rpm — Max RCF: 7283 × g — Adapter: /
• No.14 — Angle rotor — Capacity: 4 × 8 PCR — Max speed: 14000 rpm — Max RCF: 13720 × g — Adapter: /

Ordering & availability
Brand: BIOBASE
Product origin: CHINA
Delivery time: Within 7 days
Supply capacity: Factory direct supply
