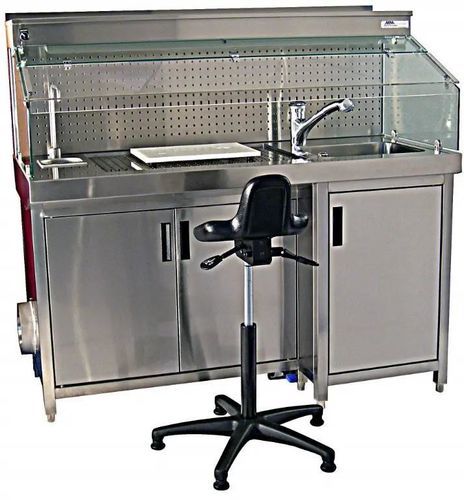

Analysis laboratory bench

for histopathologystainless steelwet processing

Description
Worktop in INOX 316L thickness 15/10 (1.5 mm), fixed height 90 cm. Chassis and cladding in INOX 304L. Worktop length 90 cm and width 50 cm, equipped with removable perforated dissection trays (air velocity 0.4 m/s). Table fitted with a ventilated lower cabinet to ensure clean air and safe working conditions.

Lower section
Ventilated cabinet runs along the full length of the table, storage space with access via sliding doors. Ergonomic return allowing seated or standing work (except if optional sink is installed). Access to technical components (register adjustments, plumbing, etc.), 4 adjustable feet, external siphon, lateral extraction connection.

Upper section
Frontal extraction plenum along the full length of the table with a height of 400 mm. Standard lighting: 2 x 36 W compact fluorescent lamps in a sealed enclosure. Fold-down containment in 8 mm SECURIT glass and PMMA (movable part) with two opening positions; this hood channels vapour flow and protects the operator from splashes.

Dimensions and weight
Main dimensions: 1500 x 750 x 1400 mm + return 30 mm (width x length x height). Weight: approx. 150 kg.

Variants
Model width 180 cm (ref. 4820) and model width 200 cm (ref. 4830).

Available options

• Stainless steel sink 40 x 34 cm
• Fixative (formalin) recovery system with level detector
• Air extractor (ref. 502120/C)
• Fixative recovery system with level detector and audible alarm
• Sieve to be placed at the sink
• IP55 electrical sockets
• All-stainless steel shelf
• Waste bin on worktop outside perforated area with lid
• Integration of optional sink for fixative into ventilated worktop (minimum width PV800 mm)
• Upper stainless storage compartment (bridge fixed to structure)
• Macroscopy table trolley

Packaging
Sold individually in a single cardboard box.

Technical characteristics / specifications

• Materials: worktop INOX 316L (15/10), chassis and cladding INOX 304L
• Fixed height: 90 cm
• Standard dimensions: 1500 x 750 x 1400 mm (+ return 30 mm)
• Weight: ≈ 150 kg
• Removable perforated dissection trays, air velocity 0.4 m/s
• Ventilated lower cabinet along full length
• Frontal extraction plenum height 400 mm
• Lighting: 2 x 36 W in sealed enclosure
• Movable containment: 8 mm SECURIT glass + PMMA, two opening positions
• Feet: 4 adjustable feet
• Siphon: external
• Extraction: lateral extraction connection
• Width variants: 150 cm (standard), 180 cm, 200 cm
