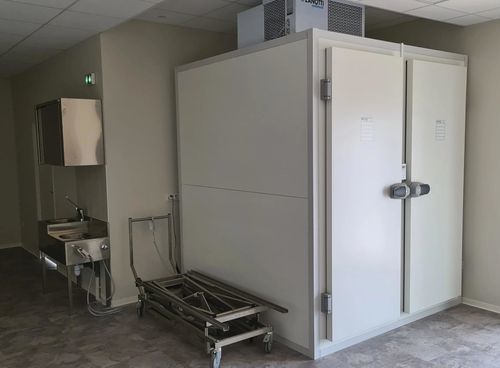

Mortuary stretcher refrigerated mortuary cabinet

8-bodyfront-loading2-door

Description
Positive cold temperature for preservation of bodies at +4°C (adjustable range -5°C to +10°C). Insulation panels thickness 60 mm. Two free-access doors (H x W) 220 x 80 cm with 180° opening possible to left or right. Interior fit-out in stainless steel 304 including 8 stretchers 60 cm wide.

Refrigeration unit and configuration
Monoblock refrigeration unit, side-mounted saddle configuration. Extendable to 10 bodies by adding 2 additional stretchers and 2 KITRAIL; for this extension, a ceiling-mounted unit is mandatory.

Dimensions and variants

• Positive cold configuration: dimensions (L x H x D) 212 x 252 x 218 cm (+30 cm for the unit in width).
• Negative cold variant: temperature range -25°C to 0°C, panel thickness 100 mm, dimensions (L x H x D) 220 x 260 x 230 cm (+30 cm for the unit in width).

Packaging
Delivered unitized, on a pallet.

Available references

• Ref. 550882C All painted front door PET55µ
• Ref. 650882C Front stainless steel 304
• Ref. 750882C All stainless steel 304
• Ref. 551082P All painted front door PET55µ
• Ref. 651082P Front stainless steel 304
• Ref. 751082P All stainless steel 304
• Ref. 550882N, 650882N, 750882N (negative cold variants)

Remarks
For extension to 10 bodies, plan addition of stretchers and KITRAIL as well as the appropriate ceiling unit.

Characteristics / technical specifications

• Initial capacity: 8 bodies (extendable to 10)
• Preservation temperature (positive cold): +4°C (adjustable -5°C to +10°C)
• Negative cold variant: -25°C to 0°C
• Panel thickness: 60 mm (positive) / 100 mm (negative)
• Doors: 2 free-access doors 220 x 80 cm, 180° opening (left/right)
• Interior: stainless steel 304
• Stretchers: 8 supplied, width 60 cm
• Refrigeration unit: monoblock, side-mounted saddle configuration (ceiling unit for extension)
• Dimensions (positive): 212 x 252 x 218 cm (+30 cm for the unit)
• Dimensions (negative): 220 x 260 x 230 cm (+30 cm for the unit)
• Packaging: unitized, on pallet
