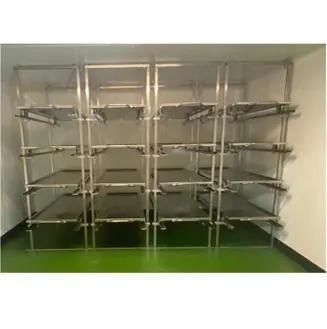

Mortuary stretcher storage rack 5

on castersstainless steel

Description
Manufactured in stainless steel 304, this rack enables storage of multiple bodies in a mortuary cold room.
Capacity: 5 bodies compatible with stretchers 60 cm or 75 cm with a standard center-to-center spacing of 56 cm.
The rails include end stops and a stretcher locking mechanism. The unit is fitted with four 125 mm swivel castors, two with brakes, to secure the rack during handling.
The vertical positions of the levels relative to the floor depend on rack capacity: for 5 bodies the levels are at 35, 77, 112, 163 and 189 cm from the floor.
Dimensions: width according to stretcher 70 cm or 85 cm x length 200 cm x height 200 cm.

Packaging:
Single unit

Features / Technical specifications

• Material: stainless steel 304
• Capacity: 5 bodies
• Stretcher compatibility: 60 cm or 75 cm
• Standard center-to-center spacing: 56 cm
• Rails: end stops and stretcher locking system
• Castors: 4 swivel castors 125 mm (2 with brake)
• Level positions for 5 bodies (height from floor): 35 cm, 77 cm, 112 cm, 163 cm, 189 cm
• Overall dimensions: width according to stretcher 70 cm or 85 cm, length 200 cm, height 200 cm
• Main use: storage in mortuary cold rooms / funeral refrigerated cells
