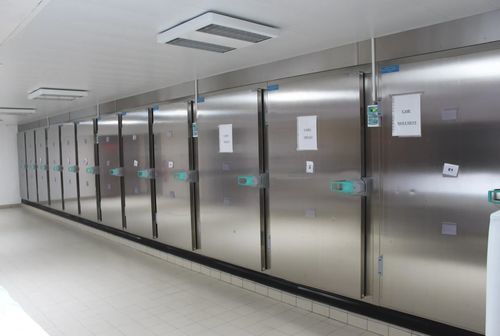

Mortuary stretcher refrigerated mortuary cabinet

multiple-bodyfront-loadingwith door

Description
Temperature range -5°C to +10°C, panels 60 mm thick (100 mm option for hot or humid areas). Doors with clear passage height 182 or 220 cm and width 62, 80 or 100 cm with left or right 180° opening. Pass-through gates with clear passage height 55 cm and width 62, 80 or 100 cm with left or right 180° opening. Interior depth options: 200, 220 or 240 cm (including for oversized coffins). Possibility to mix positive (−5°C to +10°C) and negative (−25°C to 0°C) refrigeration by using 100 mm panels and a vertical partition wall between compartments (one refrigeration unit per compartment required). Interior fittings: full stainless steel 304, 2 to 5 levels, with 2 to 5 stretchers (Ref.1560) per level. Refrigeration unit: monobloc, side-mounted; optional ceiling-mounted or remote Split system (placing the evaporator inside the cell removes one stretcher position per row). Available finishes: lacquered door facade PET55µ, stainless steel 304 facade, full stainless steel 304, additional hard grey PVC coating (ACROVYN) on the door facade.

Dimensions

• Doors: heights 182 cm or 220 cm; widths 62 cm, 80 cm or 100 cm
• Pass-through gates: height 55 cm; widths 62 cm, 80 cm or 100 cm
• Interior depth options: 200 cm, 220 cm or 240 cm

Packaging
unit, on pallet

Specifications / technical data

• Temperature range (positive cold): -5°C to +10°C
• Temperature range (negative cold, mixed option): -25°C to 0°C
• Panel thickness: 60 mm standard; 100 mm optional (hot/humid areas or for mixed compartments)
• Interior fittings: stainless steel 304
• Number of levels: 2 to 5
• Stretchers per level: 2 to 5 (Ref.1560)
• Refrigeration units: monobloc side-mounted; optional ceiling-mounted or remote Split
• Impact of internal evaporator: removes one stretcher position per row
• Door/gate opening: 180°, left or right
• Available finishes: lacquered (door facade PET55µ), stainless steel 304 facade, full stainless steel 304, hard grey PVC coating (ACROVYN)
• Packaging: unit, on pallet
