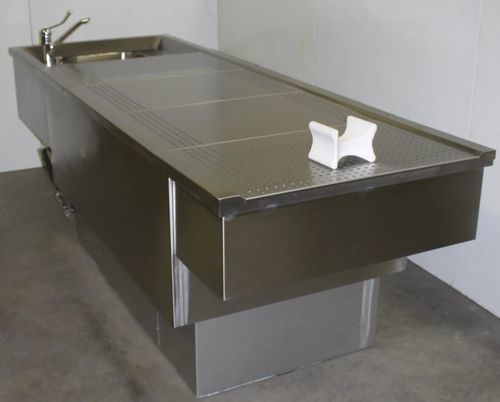

Forensic autopsy table 3810 series

laboratorydissectionfixed

Description
Autopsy table designed for post-mortem examinations, with 4 removable perforated trays for fluid drainage and odor extraction. Equipped with a large sink bowl, elbow-operated mixer tap and a cold-water hand shower with a 4 m hose, a permanent rinse tap, a drain with overflow and trap, and a 230 V / 50 Hz electrical outlet.

Ergonomics and performance
Its wide base of 142 x 72 cm provides strong stability. Electrically adjustable height from 73 to 103 cm for optimized ergonomics. Odor extraction system with built-in turbine for user comfort.

Materials and dimensions
Top manufactured in stainless steel 316, remaining structure in stainless steel 304. Indicative dimensions: L 270 x W 90 cm (option width 80 cm) x H 73 to 103 cm. Weight: 220 kg. Load capacity: 300 kg.

Variants and options

• Available variant: Ref. 3810/F — Fixed height 85 cm
• Available options: Ref. 3800/G — Graduation from 0 to 200 cm
• Ref. 3800/B — Macerator under the sink
• Ref. 3800/PA — Under-sink basket H 10 cm hole diameter 3 mm
• Ref. 3800/H — Hydro-aspirator for suction of fluids from the autopsy
• Ref. 3800/R — Table rotation ±90°
• Ref. 3800/D — Cutting board 60 x 80 x 2.5 cm

Packaging
Single unit in individual carton.

Characteristics / technical specifications

• 4 removable perforated trays for fluid evacuation
• Large integrated sink bowl
• Elbow-operated mixer tap
• Cold-water hand shower with 4 m hose
• Permanent rinse tap
• Drain with overflow and trap
• Electrical outlet 230 V / 50 Hz
• Base: 142 x 72 cm
• Electrically adjustable height: 73 to 103 cm
• Top: stainless steel 316; structure: stainless steel 304
• Dimensions: L 270 x W 90 cm (option 80 cm) x H 73 to 103 cm
• Weight: 220 kg
• Load capacity: 300 kg
