Mortuary stretcher storage rack 4

on castersstainless steel

Description

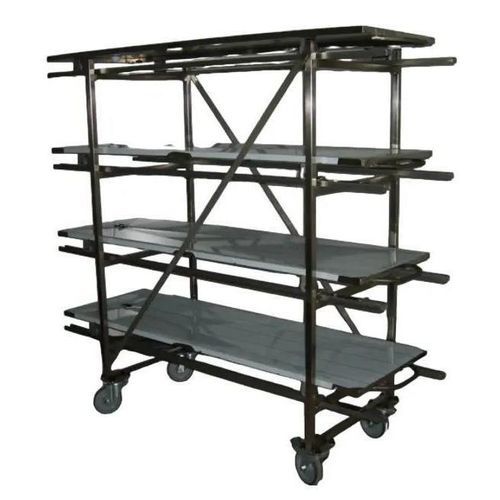

Stainless steel 304 rack designed to store multiple bodies in a disaster/mass-fatality chamber. Capacity for 4 bodies for stretchers 60 cm or 75 cm with a standard center-to-center spacing of 56 cm.
Rails include end stops and a stretcher locking system. Four swivel castors Ø 12.5 cm, two with brake, allow the rack to be locked during handling.
Body positions relative to the floor vary by rack capacity: for 4 bodies the levels are at 35 cm, 81 cm, 126 cm and 174 cm from the floor.
Dimensions: width according to stretcher 70 or 85 cm × length 200 cm × height 185 cm.

Packaging
Sold individually.

Technical characteristics / specifications

• Material: stainless steel 304
• Capacity: 4 bodies
• Compatible with stretchers: 60 cm or 75 cm (rack width 70 or 85 cm)
• Standard center-to-center spacing: 56 cm
• Rails: end stops and stretcher locking system
• Wheels: 4 swivel castors diameter 12.5 cm, 2 with brake
• Levels (heights from floor for 4 bodies): 35 cm, 81 cm, 126 cm, 174 cm
• Dimensions: width according to stretcher 70 or 85 cm × length 200 cm × height 185 cm
