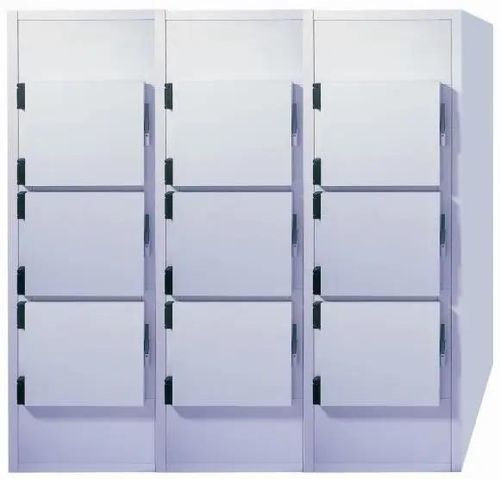

Mortuary stretcher refrigerated mortuary cabinet

9-bodyfront-loadingwith door

Presentation
Positive refrigeration for mortuary body storage at nominal +4°C: temperature range -5°C to +10°C. Panels thickness 60 mm. 9 access doors with clear opening (H x W) 55 x 62 cm, hinged left or right with 180° opening. Interior fit-out in stainless steel 304 with 9 stretchers, stretcher width 60 cm. Monobloc refrigeration unit, lateral saddle mounting.

Dimensions (standard)
252 x 252 x 218 cm (W x H x D) (+30 cm for the unit in width).

Variants

• Negative refrigeration: temperature -25°C to -0°C, panels thickness 100 mm; dimensions 260 x 260 x 230 cm (W x H x D) (+30 cm for the unit in width).
• Fronts/finishes: Fully lacquered door front PET55µ (Ref. 550969C / 550969NC), 304 stainless steel front (Ref. 656969C / 650969NC), Fully 304 stainless steel (Ref. 750969C / 750969NC).

Available options

• Coating: optional hard grey PVC coating (ACROVYN) on the door front (Ref. 50000/PR).
• Stretchers: choice of flat stretchers width 60 cm (Ref. 1560) or curved (Ref. 1561). For cells with 80 cm or 100 cm opening (with surcharge): curved stretchers width 75 cm (Ref. 1571).
• Other clear openings: width 62 cm; width 100 cm with included 75 cm stretchers.
• Unit variant: ceiling-mounted; split system with remote unit up to 15 metres.

Packaging
Single unit, on pallet.

Characteristics / technical specifications

• Use: mortuary body conservation (funerary).
• Capacity: 9 bodies, 9 stretchers width 60 cm.
• Positive refrigeration temperature: +4°C (range -5°C to +10°C).
• Negative refrigeration temperature (variant): -25°C to -0°C.
• Panels thickness: 60 mm (standard); 100 mm (negative refrigeration variant).
• Number and dimensions of access doors: 9 doors, clear opening H x W = 55 x 62 cm; 180° opening (left or right).
• Interior fit-out: full 304 stainless steel.
• Refrigeration unit: Monobloc, lateral saddle mounting (ceiling or remote split variants available).
• Standard dimensions (W x H x D): 252 x 252 x 218 cm (+30 cm for the unit in width).
• Negative refrigeration variant dimensions (W x H x D): 260 x 260 x 230 cm (+30 cm for the unit in width).
