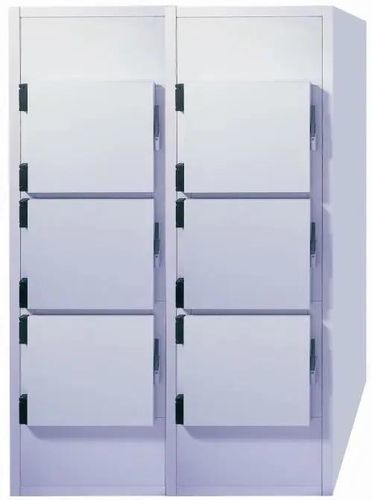

Mortuary stretcher mortuary cabinet

6-bodyfront-loading6-door

Description
Positive refrigeration temperature for preservation of bodies at +4°C: temperature range -5°C to +10°C. Panels thickness 60 mm. 6 access doors (H x W) 55 x 62 cm with left- or right-hand opening to 180°. Interior fittings all stainless steel 304 with 6 stretchers width 60 cm. Monobloc refrigeration unit, side-mounted saddle configuration.

Main dimensions
Dimensions (W x H x D) 172 x 252 x 218 cm (+30 cm for the refrigeration unit in width).

Variants
Variant: Negative refrigeration temperature -25°C to -0°C, panels thickness 100 mm. Dimensions (W x H x D) 180 x 260 x 230 cm (+30 cm for the refrigeration unit in width).

References and finishes
Ref. 550666C: Fully lacquered door with PET55µ facing. Ref. 656366C: Front stainless steel 304. Ref. 750666C: Fully stainless steel 304. Ref. 550666NC: Fully lacquered door with PET55µ facing (negative variant). Ref. 650666NC: Front stainless steel 304 (negative variant). Ref. 750666NC: Fully stainless steel 304 (negative variant).

Packaging
Unit, on pallet.

Characteristics / technical specifications

• Type: Conservation chamber for 6 bodies with access doors
• Operating temperature (standard): positive refrigeration at +4°C (range -5°C to +10°C)
• Temperature variant: negative refrigeration -25°C to -0°C
• Panel thickness (standard): 60 mm
• Panel thickness (negative variant): 100 mm
• Number of access doors: 6
• Door passage dimensions (H x W): 55 x 62 cm
• Door opening: left or right, 180°
• Interior fittings: all stainless steel 304
• Stretchers: 6 stretchers, width 60 cm
• Refrigeration unit: Monobloc, side-mounted saddle
• External dimensions (standard): 172 x 252 x 218 cm (+30 cm for the refrigeration unit in width)
• External dimensions (negative variant): 180 x 260 x 230 cm (+30 cm for the refrigeration unit in width)
• Available finishes: lacquered door with PET55µ facing, stainless steel 304 front, fully stainless steel 304
• Packaging: unit, on pallet
