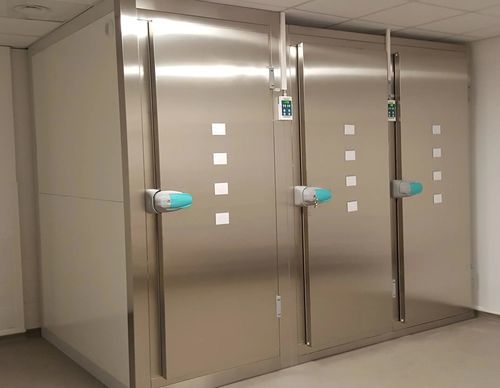

Mortuary stretcher refrigerated mortuary cabinet

12-bodyfront-loadingwith door

Description Mortuary cold room for positive-temperature preservation of bodies, configured for 12 stretchers and extendable to 15. Temperature range adjustable from -5°C to +10°C; typical preservation setpoint +4°C. Insulating panels 60 mm thick. Three free-clearance doors (H x W) 220 x 80 cm with reversible 180° opening. Interior layout in stainless steel 304 with 12 stretcher positions (60 cm width). Monobloc refrigeration unit, lateral saddle-mounted. Standard dimensions (W x H x D): 312 x 252 x 218 cm (+30 cm for refrigeration unit width). Negative-temperature variant available (-25°C to -0°C) with 100 mm panels; dimensions (W x H x D): 220 x 260 x 230 cm (+30 cm for refrigeration unit width).

References and finishes

• Ref. 551283C: fully painted, door facade PET55µ
• Ref. 651283C: door facade stainless steel 304
• Ref. 751283C: fully stainless steel
• Expandable variant (extensible): Ref. 551583P fully painted door facade PET55µ; Ref. 651583P stainless steel 304 facade; Ref. 751583P fully stainless steel 304
• Negative-temperature variant: Ref. 551283N fully painted door facade PET55µ; Ref. 651283N stainless steel 304 facade; Ref. 751283N fully stainless steel 304

Available options

• Door facing: optional hard grey PVC (ACROVYN) on door facade (Ref. 50000/PR)
• Stretchers: choice of 60 cm flat stretcher (Ref. 1560) or curved stretcher (Ref. 1561)
• 75 cm curved stretchers available with surcharge (Ref. 1571)
• Other free-clearance passages available: 62 cm; 100 cm (includes 75 cm stretchers)
• Refrigeration unit variants: ceiling-mounted or remote Split system (installation possible up to 15 m)

Packaging Supplied as single unit, on pallet

Technical characteristics / specifications

• Standard capacity: 12 bodies (extendable to 15)
• Temperature range (positive): -5°C to +10°C, typical preservation setpoint +4°C
• Negative-temperature variant: -25°C to -0°C
• Panel thickness: 60 mm (negative variant 100 mm)
• Doors: 3 doors, free-clearance H x W = 220 x 80 cm, 180° opening (other widths optional)
• Interior: stainless steel 304
• Refrigeration unit: Monobloc, lateral saddle-mounted (option: ceiling unit or remote Split)
• Standard dimensions (W x H x D): 312 x 252 x 218 cm (+30 cm for refrigeration unit width)
• Negative variant dimensions (W x H x D): 220 x 260 x 230 cm (+30 cm for refrigeration unit width)
• Compatible accessories: KITRAIL for extension, specified stretcher references
