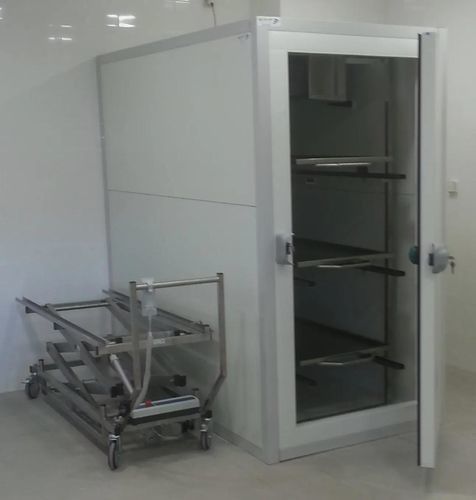

Body tray refrigerated mortuary cabinet

3-bodyfront-loading1-door

Presentation
Positive-temperature mortuary cold room designed to store 3 bodies at a maintained +4°C (operating range -5°C to +10°C). Panels thickness 60 mm. One passage door (H x W) 182 x 80 cm, left or right opening at 180°. Interior fittings entirely in stainless steel 304 with 3 stretchers 60 cm wide.

Refrigeration unit and dimensions
Monobloc refrigeration unit, lateral saddle mounting. Dimensions (W x H x D) 92 x 212 x 218 cm (+30 cm width for the refrigeration unit). Ref. 500381C. Finishes: fully lacquered; door facing PET 55µ; 304 stainless steel front; all stainless steel 304 interior.

Expandability
Expandable to 4 bodies by adding one extra stretcher and a KITRAIL. For this extension a ceiling-mounted refrigeration unit is mandatory.

Negative-temperature variant
Variant with negative refrigeration: -25°C to -0°C, panels thickness 100 mm. Dimensions (W x H x D) 120 x 220 x 230 cm (+30 cm width for the refrigeration unit). Ref. 700381N. Finishes: fully lacquered; door facing PET 55µ; 304 stainless steel front; all stainless steel 304 interior.

Packaging
Unitary packaging, on pallet.

Characteristics / technical specifications

• Use: body conservation (3 bodies, expandable to 4)
• Temperature (positive refrigeration): maintained at +4°C; operating range -5°C to +10°C
• Temperature (negative variant): -25°C to -0°C
• Panel thickness (positive): 60 mm
• Panel thickness (negative): 100 mm
• Door: 1 passage door H x W = 182 x 80 cm, 180° opening (left or right)
• Interior fittings: all stainless steel 304
• Standard capacity: 3 stretchers 60 cm wide (expandable to 4 with additional stretcher and KITRAIL)
• Refrigeration unit: Monobloc, lateral saddle mounting (extension variant requires ceiling unit)
• Dimensions (positive): 92 x 212 x 218 cm (+30 cm for unit width)
• Dimensions (negative): 120 x 220 x 230 cm (+30 cm for unit width)
• Displayed product references: 500381C (positive), 700381N (negative)
• Finishes: fully lacquered / door facing PET55µ / 304 stainless steel front / all 304 stainless steel
• Packaging: unitary, on pallet
