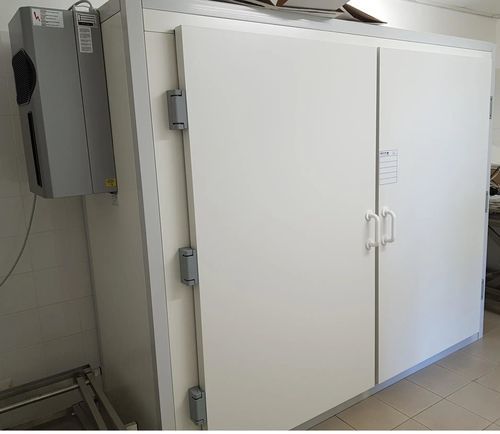

Mortuary stretcher refrigerated mortuary cabinet

2-body3-bodyside-loading

Description
This unit is suitable for rooms where depth is limited and the clearance in front is not sufficient for both the forklift and the chamber to pass (minimum 212 + 280 cm). Its shallow depth of 92 cm (without doors) optimizes use of available space. Side loading with the specific forklift (Ref. 2350L) reduces the maneuvering clearance required in front of the chamber during handling: required space is 250 cm instead of 500 cm. The two door leaves open up to 180°; the left leaf opens to the left and the right leaf to the right. The floor must be perfectly level to correctly adjust both leaves.

Operation and interior layout
Positive refrigeration for body preservation at +4°C: operating range -5°C to +10°C. Panels thickness 60 mm. Clear opening (H x W) 182 x 210 cm with doors opened to 180°. Interior layout in stainless steel 304 with 3 stretchers arranged across (stretcher width 60 cm). Monobloc refrigeration unit, side-mounted saddle installation.

Variants and references

• Ref. 5003L2C: Fully painted, door front PET 55 µ
• Ref. 6003L2C: Front stainless steel 304
• Ref. 7003L2C: Fully stainless steel 304
• Possible 2-body interior layout (interior modification only):
• Ref. 5002L2C: Fully painted, door front PET 55 µ
• Ref. 6002L2C: Front stainless steel 304
• Ref. 7002L2C: Fully stainless steel 304
• Negative-temperature variant (-25°C to -0°C): panels thickness 100 mm, external dimensions (W x H x D) 260 x 220 x 110 cm (+30 cm for refrigeration unit width)
• Ref. 5003L2N: Fully painted
• Ref. 6003L2N: Front stainless steel 304
• Ref. 7003L2N: Fully stainless steel 304

Available options

• Coating: Ref. 50000/PR hard grey PVC covering (ACROVYN) on door fronts
• Stretcher types: flat stretcher Ref. 1560 or curved stretcher Ref. 1561
• Refrigeration unit variants: ceiling-mounted unit or remote split system up to 15 m

Packaging
Sold individually, on pallet

Characteristics / technical specifications

• Use: side-loading 3-body preservation with double swing doors
• Internal depth (without doors): 92 cm
• External dimensions (W x H x D): 252 x 212 x 98 cm (+30 cm refrigeration unit width)
• Temperature (positive): preservation at +4°C; range -5°C to +10°C
• Negative-temperature variant: -25°C to -0°C
• Panel thickness: 60 mm (positive) / 100 mm (negative)
• Clear opening (H x W): 182 x 210 cm (doors opened to 180°)
• Door opening: up to 180° (left leaf opens left, right leaf opens right)
• Interior finish: stainless steel 304
• Number of stretchers: 3 across, stretcher width 60 cm (interior configurable for 2 bodies)
• Type of refrigeration unit: Monobloc, side-mounted saddle installation (options: ceiling or remote split)
• Product references and finishes: 5003L2C / 6003L2C / 7003L2C (painted / stainless front / full stainless)
