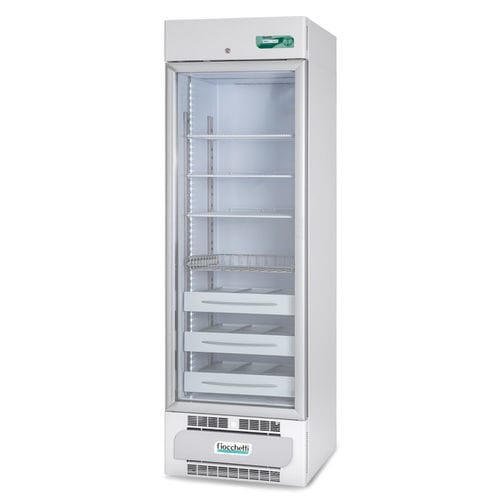

Laboratory freezer VISION 400 ECT-F

for vaccinesfor pharmaciesfor hospitals

Overview
Upright medical freezer with tempered triple low-emissivity glass door, operating down to -20°C. Designed for pharmacies, hospitals and clinics for storage of vaccines, pharmaceuticals and temperature‑sensitive materials.

Main features

• Triple low‑e tempered glass door compliant with IEC 61010-1 for thermal insulation and external inspection without opening the door.
• Full‑length anodized aluminium ergonomic handle.
• Full‑height internal LED lighting.
• Adaptive automatic defrost with condensation evaporation.

Structure and refrigeration

• Internal dimensions: 50 x 49 x 140 cm
• Nominal capacity: 400 L
• Net capacity: 347 L
• Insulation: injected high‑density polyurethane 43 kg/m3, ecological water‑assisted injection; thickness 70 mm (back) / 50 mm (sides)
• Cabinet: single‑piece white coated antibacterial steel inside/outside; optional interior in AISI 304 stainless steel. Rounded corners and sump base. Four unidirectional rollers and two front feet included.
• Cooling: professional forced‑air refrigeration

ECT-F electronic controller
Temperature display and setpoint with 0.1°C resolution and ±0.3°C accuracy. Backlit alphanumeric LCD (16 characters) configurable in 5 languages. 4‑key membrane keypad with customizable password for power and setpoint protection. Records up to 12 events and signals multiple temperature alarms.

Technical data

• Refrigerant: R290
• Power consumption: 5 kWh/24h
• Rated power / Current: 0.32 kW / 2.3 A
• Starting current: 5 A
• Noise level: <45 dBA
• Heat emission (EN 12900): 208 W
• Max shelves: 5 (46 x 45 cm)
• Max drawers: 7

Applications
Intended for pharmacies (including storage of gluten‑free products), hospital departments, laboratories and clinics for vaccines, drugs and other temperature‑sensitive items.

Available accessories on request

• Key lock
• Shelf for models 170‑200‑250‑400
• Stainless steel shelf for models 170‑200‑250‑400
• Perforated stainless steel shelf for models 170‑200‑250‑400
• Sliding aluminium drawer with dividers for models 170‑200‑250‑400
• Sliding aluminium drawer without dividers for models 170‑200‑250‑400
• Sliding wire drawer on guides for models 170‑200‑250‑400
• Front plexiglass riser for drawer
• Drawer with lock for narcotics
• Wire rack 14 x 42 x 15 cm (max 3 per shelf)
• Wire rack 14 x 50 x 15 cm (max 3 per shelf)
• Wheel kit (2 wheels with brake) for models 170‑200‑250‑400
• Cable gland hole Ø 35 mm with plug
• Hole Ø 15 mm
• PT100 probe with free contacts
• 230V/1~/50‑60Hz power supply
• 115V/1~/60Hz power supply
• Voltage stabilizer
• Cage packaging

Specifications

• Commercial model: VISION 400 ECT-F
• Type: Upright freezer with glass door
• Temperature range: -10 / -20°C
• Net capacity: 347 L
• Nominal capacity: 400 L
• External dimensions (WxDxH): 60 x 67 x 196 cm
• Internal dimensions (WxDxH): 50 x 49 x 140 cm
• Insulation: injected polyurethane 43 kg/m3, thickness 70 mm (back) / 50 mm (sides)
• Internal materials: antibacterial white coated steel or AISI 304 stainless steel
• Door: tempered triple low‑e glass (IEC 61010-1)
• Lighting: internal full LED
• Refrigerant: R290
• Consumption: 5 kWh/24h
• Rated power: 0.32 kW / Current: 2.3 A
• Starting current: 5 A
• Noise: <45 dBA
• Heat emission (EN12900): 208 W
• Controller: ECT‑F, LCD 16 characters, resolution 0.1°C, accuracy ±0.3°C, 4‑key keypad, 12 event log, multiple alarms
• Internal configurations: max 5 shelves (46 x 45 cm), max 7 drawers (various types and sizes)
