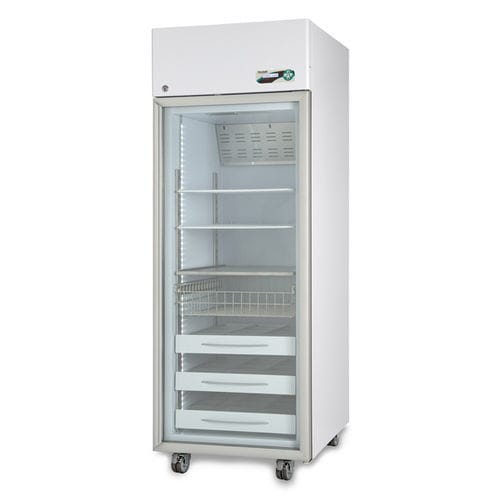

Vaccine freezer VISION 700 ECT-F PLUS

for pharmaciesfor hospitalsfor healthcare facilities

Description
Large-capacity upright freezer with tempered triple low-emissivity glass door and temperature control down to -20°C. Designed for pharmacies, hospitals and clinics for storage of vaccines, pharmaceuticals, gluten‑free products and other thermosensitive materials.

Main features

• Triple low‑e tempered glass door (tempered to IEC 61010-1) for external content check without opening
• ECT-F PLUS controller with 0.1°C resolution, accuracy ±0.3°C
• Temperature range: -10 / -20°C
• Net capacity: 620 L – Nominal capacity: 700 L
• External dimensions: 75 x 87 x 210 cm
• Internal dimensions: 60 x 68 x 150 cm
• Injected high‑density polyurethane insulation (43 kg/m3), 75 mm thickness, CFC‑free
• Single‑shell structure in white plastified steel internal/external with certified antibacterial treatment or internal stainless steel 18/10 AISI 304
• Full‑height internal LED lighting
• 4 height‑adjustable feet; wheel kit available as accessory
• Adaptive automatic defrost with condensate evaporation

Controller details
ECT-F PLUS ELECTRONIC CONTROLLER: temperature display and setting at 0.1°C resolution; 16‑character alphanumeric backlit LCD configurable in 5 languages; 4‑key membrane keypad; accuracy ±0.3°C. Backup battery for power‑loss alarm up to 48 hours; min/max temperature memory; clean contact for remote alarms; display configurable in four modes; password protection for power/on‑off/set‑point; logs 16 events and multiple alarms (including high value for power loss).

Structure and refrigeration

• Internal dimensions: 60 x 68 x 150 cm
• Nominal capacity: 700 L
• Net capacity: 620 L
• Insulation: injected high‑density polyurethane (43 kg/m3), ecological water‑based injection
• Insulation thickness: 75 mm
• Structure: single‑piece body in white plastified steel or internal stainless steel 18/10 AISI 304; rounded corners and sump‑style base
• Internal lighting: full‑height LED
• Refrigeration type: professional forced‑air ventilation
• Defrost type: automatic adaptive with condensate evaporation

Technical data
Refrigerant: R290
Consumption: 6 kWh/24h
Power input / Current: 0.35 kW / 2.5 A
Starting current: 7 A
Noise level: <55 dBA
Heat emitted (EN 12900): 250 W
Max number of shelves/grids: 7 (grid size: 56 x 65 cm)
Max number of drawers: 7
Internal drawer size with dividers (LxDxH) (x n.slots): 15 x 60 x 7.5 cm (3)
Internal drawer size without dividers (LxDxH): 49 x 60 x 7.5 cm
Max wire baskets: 7
Wire basket internal size (LxDxH): 53.8 x 63 x 14.8 cm
Max wire drawers: 7
Wire drawer internal size (LxDxH): 53.8 x 49 x 6.2 cm

Available accessories (selection)

• Key lock
• External clean contacts for ECT-F PLUS
• DIN 13277 compliance (for ECT-F PLUS)
• Graphic chart recorder
• Stainless steel shelves for 700–1500 models
• Wire racks (various sizes)
• Sliding aluminium drawers with or without dividers for 700–1500 models
• Sliding wire baskets on guides
• Wheel kit (2 wheels with brake) for selected models
• Cable pass‑throughs and PT100 probes (optional)

Product code
Cod. VIS0703

Specifications

• Model: VISION 700 ECT-F PLUS
• Temperature range: -10 / -20°C
• Net capacity: 620 L
• Nominal capacity: 700 L
• External dimensions: 75 x 87 x 210 cm
• Internal dimensions: 60 x 68 x 150 cm
• Insulation: polyurethane 43 kg/m3, thickness 75 mm
• Refrigerant: R290
• Consumption: 6 kWh/24h
• Power input: 0.35 kW - Current 2.5 A - Starting 7 A
• Noise: <55 dBA
• Heat emitted EN 12900: 250 W
• Internal finish: plastified steel or AISI 304 stainless steel
• Lighting: full‑height LED
• Control: ECT-F PLUS with backup battery, alarms and event logging
