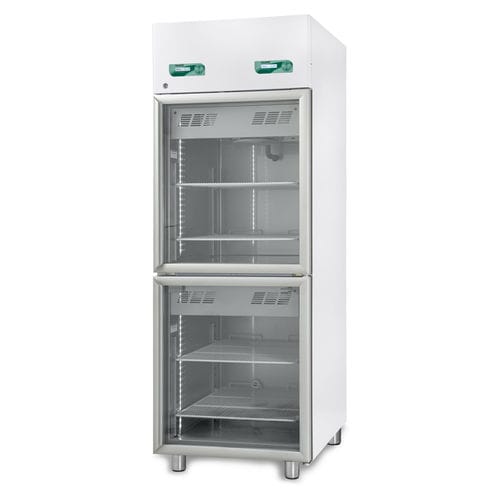

Laboratory refrigerator VISION 2T 700 ECT-F

for vaccinesfor pharmacieshospital

Brief description
Large-capacity combined refrigerator-freezer with dual compartments and dual compressors, designed for pharmaceutical and vaccine storage at differentiated temperatures, fitted with 2 tempered glass doors.

Main data

• Temperature range: +2/+15°C | -10/-20°C
• Capacity (page indication): 593 L (20.94 cu ft) — technical sheet also shows: nominal capacity 350+350 L and net capacity 620 L
• External dimensions (W x D x H): 72 x 85.5 x 203 cm
• Electronic controller type: ECT-F

Structure and refrigeration

• Internal compartment dimensions: 60 x 68 x 70 / 60 x 68 x 74 cm
• Nominal capacity: 350+350 L
• Net capacity: 620 L
• Insulation: high-density injected polyurethane (43 kg/m3), CFC-free, water-blown ecological injection
• Insulation thickness: 60 mm
• Construction: one-piece cabinet in white coated steel with certified antibacterial treatment or optional inner AISI 304 stainless steel; rounded corners and sump base
• 4 adjustable feet
• Internal lighting: full-height LED
• Refrigeration type: professional forced-air
• Defrost: automatic adaptive with condensate collection

Doors and locking

• Tempered glass doors compliant with IEC 61010-1, anti-fog and low-emissivity for improved thermal performance
• Anodized aluminium profiles
• Full-length ergonomic handles
• Magnetic gasket on four sides
• Automatic closing with return spring and 90° door stop; reversible opening direction

ECT-F electronic controller

• Temperature display and setting with 0.1°C resolution
• Accuracy: ±0.3°C
• 16-character backlit alphanumeric LCD, configurable in 5 languages
• Keypad: 4 membrane keys
• Display configurable in four reading modes
• Customizable password to protect power on/off and set-point changes
• Alarms: main temperature alarm types signalled and 12-event log

Main technical data

• Refrigerant: R290
• Consumption: 7 kWh/24h
• Power input / Current: kW 0.17 + 0.32 / A 1 + 2.3
• Inrush current: A 3 + 5
• Noise level: <50 dBA
• Heat emission (EN 12900): 291 W
• Max shelves: 3+3 (shelf size: 56 x 65 cm)
• Max drawers: 5+3
• Internal drawer dimensions with dividers (LxDxH): 15 x 60 x 7.5 cm (3 spaces)
• Internal drawer without dividers (LxDxH): 49 x 60 x 7.5 cm
• Max wire baskets: 3+3 (internal basket size: 53.8 x 63 x 14.8 cm)

Accessories available on request

• Key lock
• Shelf for model 500
• Sliding aluminium drawer with dividers for models 170-200-250-400
• Sliding aluminium drawer without dividers for models 170-200-250-400
• Plexiglass front riser for drawer
• Wire rack 14 x 42 x 15 cm (max 3 per shelf)
• Wire rack 14 x 50 x 15 cm (max 3 per shelf)
• Castor kit (2 with brake) for models 170-200-250-400
• Cable pass-through hole Ø 35 mm with plug
• Hole Ø 15 mm
• Humidity probe TN
• PT100 probe with free contacts
• Power supply 220V/1~/60Hz
• Power supply 115V/1~/60Hz
• Voltage stabilizer
• Cage packaging

Characteristics / technical specifications

• Series: VISION 2T
• Model: VISION 2T 700 ECT-F
• Typical applications: pharmacy, hospital, laboratory — designed for storage of medicines and vaccines at differentiated temperatures
• Doors: 2 tempered glass doors, anti-fog and low-emissivity
• Dual compartment and dual compressor for different temperature zones
• Controller: ECT-F with 16-character LCD, 4 membrane keys, 0.1°C resolution, ±0.3°C accuracy, alarms and 12-event log
• Insulation: injected polyurethane 43 kg/m3, 60 mm thickness
• Internal materials: optional AISI 304 stainless steel
• Lighting: full-height LED
• Refrigerant: R290
• Energy consumption: 7 kWh/24h
• Noise: <50 dBA
• External dimensions: 72 x 85.5 x 203 cm
• Capacity: see page indications (nominal 350+350 L, net 620 L, alternative 593 L)
