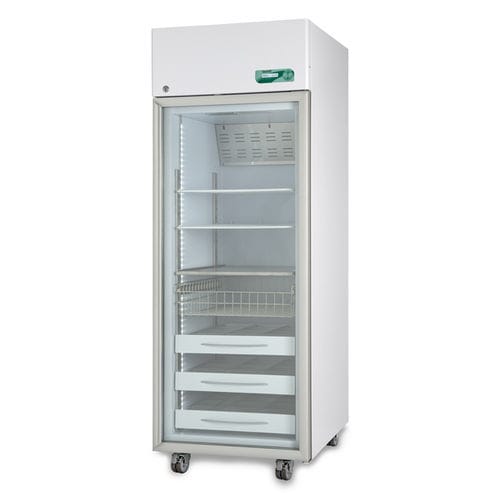

Healthcare facility freezer VISION 700 ECT-F

for pharmaciesfor hospitalsupright

Overview
Large-capacity upright freezer with tempered glass door, operating temperature range -10 / -20°C. Designed for pharmacies, hospitals and clinics for storage of gluten-free products, medicines, vaccines and other thermosensitive materials.

Main features

• Temperature range: -10 / -20°C
• Net usable capacity: 620 L
• Nominal capacity: 700 L
• External dimensions (W×D×H): 75 × 87 × 210 cm
• Internal dimensions (W×D×H): 60 × 68 × 150 cm
• Electronic controller type: ECT-F
• Triple low-emissivity glass door (tempered glass according to IEC 61010-1)
• Ergonomic anodized aluminium handle
• Modular interiors, rounded corners and sump base
• Full-height internal LED lighting
• 4 height-adjustable feet
• Professional forced-air refrigeration
• Automatic adaptive defrost with condensate evaporation

ECT-F electronic controller
Temperature display and setting with 0.1°C resolution, accuracy ±0.3°C. 16-character backlit alphanumeric LCD, configurable in 5 languages. Membrane keypad with 4 keys. Display configurable in four reading modes. Password protection for power on/off and set-point changes. Alarm functions for temperature alerts and event logging up to 12 events.

Technical data

• Product code: VIS0701
• Refrigerant gas: R290
• Consumption: 6 kWh/24h
• Power input: 0.35 kW
• Nominal current: 2.5 A
• Inrush current: 7 A
• Noise level: <55 dBA
• Heat emission (EN 12900): 250 W
• Maximum number of shelves: 7 (shelf size: 56 × 65 cm)
• Maximum number of drawers: 7
• Internal drawer size with dividers (W×D×H): 15 × 60 × 7.5 cm (x 3 spaces)
• Internal drawer size without dividers (W×D×H): 49 × 60 × 7.5 cm
• Maximum number of wire baskets: 7
• Wire basket internal size (W×D×H): 53.8 × 63 × 14.8 cm
• Wire drawer internal size (W×D×H): 53.8 × 49 × 6.2 cm
• Insulation: high-density injected polyurethane (43 kg/m3), CFC-free, water-based injection
• Insulation thickness: 75 mm
• Structure: one-piece moulded body in white plastic-coated steel with certified antibacterial treatment; optional interior in stainless steel 18/10 AISI 304

Available accessories (on request)

• Lock with key
• DMLP Digital Monitor
• Shelves for models 700–1500 (including stainless versions)
• Sliding aluminium drawers with/without dividers for models 700–1500
• Sliding wire drawers on guides
• Front plexiglass riser for drawer
• Drawer with lock for narcotics
• Wire racks (various sizes)
• Wheel kit (2 wheels with brake) for specific models
• Cable feed-through holes (15 or 35 mm) with plug
• PT100 probe with free contacts
• Alternative power supplies and voltage stabilizer
• Crated packaging

Characteristics / technical specifications

• Model: VISION 700 ECT-F
• Code: VIS0701
• Type: upright freezer with tempered glass door
• Operating temperature: -10 / -20°C
• Nominal capacity: 700 L
• Net capacity: 620 L
• External dimensions (W×D×H): 75 × 87 × 210 cm
• Internal dimensions (W×D×H): 60 × 68 × 150 cm
• Insulation: injected polyurethane 43 kg/m3, thickness 75 mm
• Refrigerant: R290
• Energy consumption: 6 kWh/24h
• Power input: 0.35 kW - Current 2.5 A - Inrush 7 A
• Noise level: <55 dBA
• Heat emission: 250 W
• Lighting: internal full-height LED
• Controller: ECT-F, 16-character LCD, 0.1°C resolution, accuracy ±0.3°C, alarms and event log (12 events)
• Defrost: automatic adaptive with condensate evaporation
• Materials: white plastic-coated steel interior/exterior or optional stainless steel 18/10 AISI 304 interior
