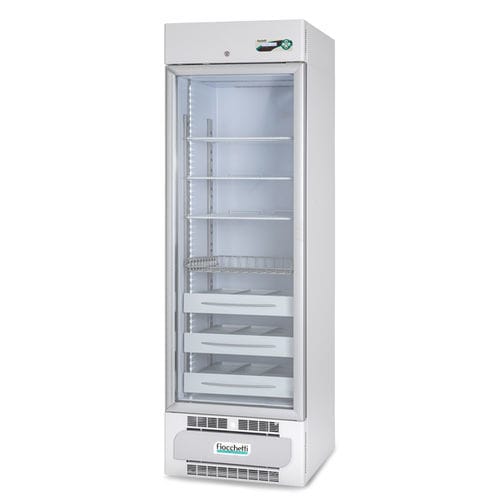

Healthcare facility freezer VISION 400 ECT-F PLUS

for pharmaciesfor vaccinesfor hospitals

Overview
Mid-size upright freezer with a tempered glass door (triple low-emissivity glazing) and an ECT-F PLUS controller with alarm display even during power loss. Designed for pharmacies, hospitals and clinics for storage of celiac products, pharmaceuticals, vaccines and temperature-sensitive materials. Modular interior to optimize storage and full-length anodized aluminium handle.

Main features

• Temperature range: -10 / -20 °C
• Net capacity: 347 L (nominal capacity 400 L)
• External dimensions (W×D×H): 60 × 67 × 196 cm
• Internal dimensions (W×D×H): 50 × 49 × 140 cm
• Door: tempered glass complying with IEC 61010-1, triple low-emissivity glazing
• Ergonomic anodized aluminium handle
• Interior: one-piece body in white plastic-coated non-toxic steel internally/externally with certified antibacterial treatment or internal AISI 304 stainless steel
• Insulation: high-density injected polyurethane (43 kg/m3), CFC-free, water-blown ecological injection
• Defrost: adaptive automatic with condensate evaporation
• Internal lighting: full-height LED
• Refrigeration: professional forced-air

Structure and refrigeration (details)
Internal dimensions: 50 × 49 × 140 cm
Nominal capacity: 400 L (14.12 cu ft)
Net capacity: 347 L (12.26 cu ft)
Type of insulation: injected polyurethane, density 43 kg/m3, CFC-free, water-blown injection
Insulation thickness: back 70 mm / sides 50 mm
Structure: one-piece body in white plastic-coated non-toxic steel or internal stainless steel 18/10 AISI 304; rounded corners and tray-shaped base; 4 unidirectional rollers included and two front feet
Type of refrigeration: professional forced-air
Defrost type: automatic, adaptive with condensate evaporation

Electronic controller ECT-F PLUS

• Temperature display and setting with 0.1 °C resolution
• Accuracy: +/- 0.3 °C
• 16-character backlit alphanumeric LCD display, configurable in 5 languages
• Keypad: 4 membrane keys
• Backup battery for power-failure alarm up to 48 hours
• Minimum/maximum temperature memory and recording of 16 events (user-resettable)
• Clean contact on the electronic board for remote alarm signaling
• Configurable display modes; option to set a password to protect power on/off and set-point changes
• Alarms: multiple types included (e.g. high temperature due to power loss) and alarm display also during power failure

Technical data

• Refrigerant gas: R290
• Consumption: 5 kWh/24h
• Power input / Current: 0.32 kW / 2.3 A
• Starting inrush: 5 A
• Noise level: <45 dBA
• Heat emission (EN 12900): 208 W
• Max number of shelves: 5 (shelf dimensions: 46 × 45 cm)
• Max number of drawers: 7
• Internal drawer size with dividers (W×D×H) (per n.spaces): 11 × 40 × 7.5 cm (3)
• Internal drawer size without dividers (W×D×H): 39 × 40 × 7.5 cm
• Max number of wire drawers: 7
• Internal wire drawer size (W×D×H): 43.5 × 40.5 × 6.2 cm

Accessories available on request

• Key lock
• External clean contacts ECT-F PLUS
• DIN 13277 compliance (for ECT-F PLUS)
• Chart recorder
• Shelf for models 170-200-250-400
• Stainless steel shelf for models 170-200-250-400
• Perforated stainless steel shelf for models 170-200-250-400
• Wire rack 14 × 42 × 15 cm (max 3 per shelf)
• Wire rack 14 × 50 × 15 cm (max 3 per shelf)
• Sliding aluminium drawer with dividers for models 170-200-250-400
• Sliding aluminium drawer without dividers for models 170-200-250-400
• Plexiglass front riser for drawer
• Sliding wire drawer on guides for models 170-200-250-400
• Lockable drawer for narcotics
• Wheel kit (2 with brake) for models 170-200-250-400
• Cable pass-through hole Ø 35 mm with plug
• Hole Ø 15 mm
• PT100 probe with free contacts
• Power supply 220V/1~/60Hz
• Power supply 115V/1~/60Hz
• Voltage stabilizer
• Crate packaging

Product code
Cod. VIS0403

Note
Equipment compliant with current international standards; the tempered glass door allows visual inspection without opening, reducing thermal losses. Intelligent defrosting prevents ice buildup.
