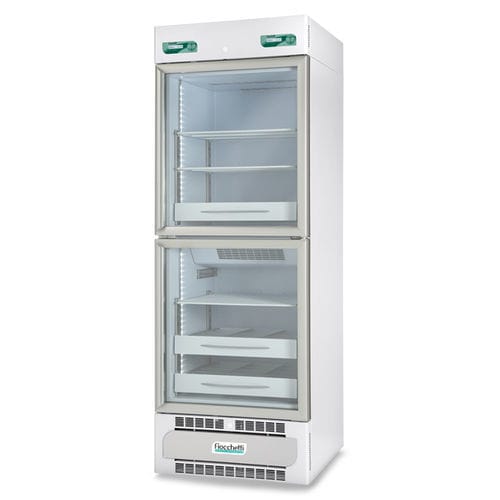

Pharmacy refrigerator VISION 2T 500 ECT-F

for hospitalslaboratoryupright

Brief description
Combined refrigerator-freezer VISION 2T 500 with two independent compartments and two compressors, designed for storage of medicines and vaccines at different temperatures. Two anti-condensation, low-emissivity tempered glass doors with anodized aluminium profiles and magnetic gaskets.

Use and applications
Suitable for pharmacies, hospitals and laboratories: independent compartments and compressors to maintain distinct temperature ranges for different products; customizable interior with shelves, drawers and baskets; glass doors for visual stock control.

Structure and refrigeration

• Internal dimensions: 60 x 58.8 x 70 / 60 x 58.8 x 74 cm
• Nominal capacity: 250 + 250 L (8.82 + 8.82 cu ft)
• Net capacity: 249 + 230 L (8.80 + 8.13 cu ft)
• Insulation: injected high-density polyurethane (43 kg/m3), CFC-free, water-blown
• Insulation thickness: 75 mm (rear) / 60 mm (sides)
• Construction: single-shell white coated steel internal/external with certified antibacterial treatment; rounded corners and sump base
• Mobility: 4 unidirectional rollers included and two front adjustable feet
• Internal lighting: full-height LED
• Refrigeration type: professional forced-air
• Defrost type: automatic, adaptive with condensate evaporation

Electronic controller (ECT-F)

• Temperature display and setting with 0.1°C resolution, accuracy ±0.3°C
• 16-character alphanumeric backlit LCD, configurable in 4 display modes
• Keypad: 4 membrane keys; configurable password to protect power on/off and setpoint changes
• Alarms: three types of temperature alarms and 12 event log entries

Internal options and accessories

• Configurable shelves, drawers and baskets
• Max no. of grids: 3 + 3 (grid size 56 x 55 cm)
• Max no. of drawers: 5 + 3 (internal drawer with dividers LxPxH: 15 x 50 x 7.5 cm (3 positions))
• Internal drawer size without dividers (LxPxH): 49 x 50 x 7.5 cm

Notes
Complies with international standards and official pharmacopoeia. Glass doors meet IEC 61010-1 safety requirements, anti-condensation and low-emissivity treated.

Technical characteristics / specifications

• Model: VISION 2T 500 ECT-F
• Code: VST0501
• Brand: Fiocchetti
• Temperature range: +2/+15°C | -10/-20°C
• Capacity/Literage: 486 L (17.16 cu ft) (250+250 nominal)
• Net capacity: 249 + 230 L
• External dimensions (WxDxH): 72 x 76 x 208 cm
• Internal dimensions: 60 x 58.8 x 70 / 60 x 58.8 x 74 cm
• Electronic type: ECT-F
• Refrigerant gas: R290
• Consumption: 5.5 kWh/24h
• Power input / Current: kW 0.17 + 0.32 / A 1 + 2.3
• Starting current: A 3 + 5
• Noise level: <50 dBA
• Heat emitted (EN 12900): 229 W
• Max no. of grids: 3 + 3 (grid size 56 x 55 cm)
• Max no. of drawers: 5 + 3
• Drawer internal size with dividers (LxPxH): 15 x 50 x 7.5 cm (x n.spaces: 3)
• Drawer internal size without dividers (LxPxH): 49 x 50 x 7.5 cm
• Insulation type: injected polyurethane 43 kg/m3
• Insulation thickness: 75 mm (rear) / 60 mm (sides)
• Construction: single-shell white coated non-toxic steel with antibacterial treatment
• Internal lighting: full-height LED
• Refrigeration type: professional forced-air
• Defrost type: automatic, adaptive
