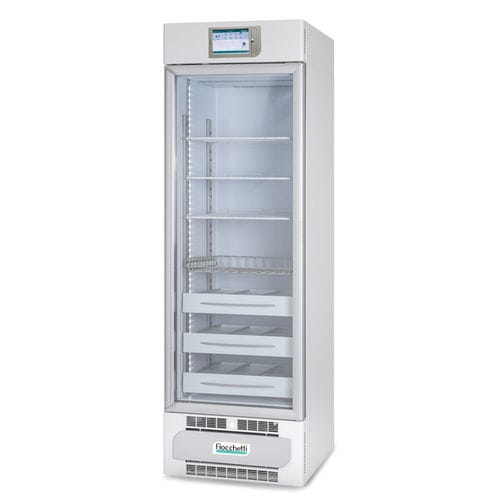

Vaccine freezer VISION 400 TOUCH

laboratoryfor pharmaciesfor hospitals

Overview
Medium-size laboratory/medical freezer with tempered triple-glazed glass door, reversible opening and ergonomic aluminium handle. Designed for pharmacies, hospitals and clinics to store vaccines, drugs and other thermosensitive products. Model code: VIS0402.

Key data

• Temperature range: -10 / -20°C
• Net capacity: 347 L (nominal 400 L)
• External dims (WxDxH): 60 x 67 x 196 cm
• Controller: TOUCH, 7" full touch screen
• Refrigerant: R290

Structure and refrigeration

• Inner dimensions: 50 x 49 x 140 cm
• Insulation: injected PUF 43 kg/m3, water‑based, CFC‑free; thickness 70 mm (back) / 50 mm (sides)
• Monocoque structure; internal/external white plastified steel with antibacterial finish or inner AISI 304 stainless steel; rounded inner corners
• Mobility: 4 unidirectional rollers + 2 front feet
• Interior lighting: full-height LED, dimmable
• Cooling: professional ventilated; defrost: automatic adaptive with condensate vaporization
• Energy saving: Night & Day function

Controller (7" FULL TOUCH SCREEN)
Microprocessor controller with 7" full touch interface, 0.1°C resolution and ±0.3°C accuracy. Standard features include temperature and alarm recording, multi-trace real‑time graph, editable setpoint and alarm limits, energy consumption readout and optional battery status. Data ports: SD card slots (data history), USB (download/update), SIM slot (GSM module optional). Integrated web server for LAN (RJ45) and MODBUS TCP/IP.

Connectivity and alarms
Dry contact for remote alarm, acoustic and visual alarms (silenceable) with automatic recording. Safety devices: anti-freeze and anti-overheating protections. Optional modules for GSM, Wi‑Fi and external monitoring.

Accessories available on request

• Electronic lock
• Power-failure alarm kit
• DMLP TOUCH independent recorder
• GSM/Wi‑Fi modules
• External terminal board
• Local and cloud monitoring systems
• Shelves, stainless steel racks, drawers and dedicated accessories

Technical data / specifications

• Model: VISION 400 TOUCH
• Brand: Fiocchetti
• Product code: VIS0402
• Temperature range: -10 / -20°C
• Net / nominal capacity: 347 L / 400 L
• External dims (WxDxH): 60 x 67 x 196 cm
• Inner dims (WxDxH): 50 x 49 x 140 cm
• Refrigerant: R290
• Energy consumption: 5 kWh/24h
• Power absorption: 0.32 kW / 2.3 A; inrush current: 5 A
• Noise level: <45 dBA
• Max shelves: 5; max drawers: 7
• Controller: 7" full touch with data logging, SD/USB/SIM slots, LAN (RJ45), MODBUS TCP/IP
