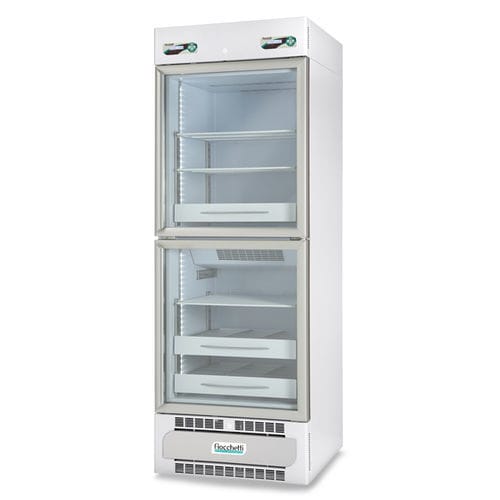

Vaccine refrigerator VISION 2T 500 ECT-F PLUS

for drugscabinetupright

Brief description
Combined pharmaceutical refrigerator-freezer with 500 L total capacity (250+250) featuring two independent chambers and dual compressors for simultaneous storage of vaccines and medicines at different temperature ranges. Two tempered glass doors with anti-fog and low-emissivity coating. Interior configurable with shelves, drawers and wire racks.

Main features

• Two independent chambers and dual compressors for differentiated temperatures
• 2 tempered glass doors compliant with IEC 61010-1, anti-fog and low-emissivity
• Full-height ergonomic handles
• Four-sided magnetic gasket, automatic closing with return spring and 90° door stay; reversible door opening
• Full-height internal LED lighting
• Professional forced-air refrigeration
• Adaptive automatic defrost with condensate evaporation

Controller
ECT-F PLUS ELECTRONIC CONTROLLER: temperature display and setting with 0.1°C resolution, accuracy +/-0.3°C; 16-character backlit alphanumeric LCD configurable in 5 languages; 4-button membrane keypad. Backup battery for power-failure alarms up to 48 hours, min/max temperature memory, clean contact for remote alarm integration. Display configurable in multiple modes; password protection for power on/off and set-point changes. Event log: 16 events; user-resettable min/max temperature.

Technical data

• Refrigerant type: R290
• Consumption: 5.5 kWh/24h
• Power absorbed / Current: kW 0.17 + 0.32 / A 1 + 2.3
• Inrush current: A 3 + 5
• Noise level: <50 dBA
• Heat emitted (EN 12900): W 229
• Max shelves: 3 + 3 — Shelf size: 56 x 55 cm
• Max drawers: 5 + 3 — Internal drawer size with dividers (LxDxH) (x n.spaces): 15 x 50 x 7.5 cm (3)
• Internal drawer size without dividers (LxDxH): 49 x 50 x 7.5 cm

Structure and insulation

• Internal dimensions: 60 x 58.8 x 70 / 60 x 58.8 x 74 cm
• Nominal capacity: 250 + 250 L (8.82 + 8.82 cu ft)
• Net capacity: 249 + 230 L (8.80 + 8.13 cu ft)
• Insulation: high-density injected polyurethane (43 kg/m3), CFC-free, eco-friendly water-blown injection
• Insulation thickness: 75 mm (back) / 60 mm (sides)
• Monocoque structure in white coated non-toxic steel with certified antibacterial treatment; rounded corners and tub-shaped bottom; 4 unidirectional rollers included and two front adjustable feet for stability

Dimensions and other data

• External dimensions (WxDxH): 72 x 76 x 208 cm
• Indicated total capacity (for listing): 486 L (17.16 cu ft)
• Temperature ranges: +2/+15 °C | -10/-20 °C
• Electronics type: ECT-F PLUS

Accessories available on request

• Lock with key
• External clean contacts for ECT-F PLUS
• Anti-freeze safety for 2T
• DIN 13277 compliance (for ECT-F PLUS)
• Shelf for model 500
• Wire rack 14 x 42 x 15 cm (max 3 per shelf)
• Wire rack 14 x 50 x 15 cm (max 3 per shelf)
• Sliding aluminium drawer without dividers model 500
• Sliding aluminium drawer with dividers model 500
• Drawer with lock for narcotics
• Plexiglass front riser for drawer
• Wheel kit (2 with brake) for model 500
• Cable gland Ø 35 mm with plug
• Hole Ø 15 mm
• Humidity probe TN
• PT100 probe with free contacts
• Power supply 220V/1~/60Hz
• Power supply 115V/1~/60Hz
• Voltage stabilizer
• Crate packing

Characteristics / technical specifications

• Model: VISION 2T 500 ECT-F PLUS
• Product code (page): VST0503
• Type: combined dual-chamber refrigerator-freezer
• Nominal capacity: 250+250 L
• Net capacity: 249+230 L
• Temperature ranges: +2/+15 °C and -10/-20 °C
• Refrigerant: R290
• Declared consumption: 5.5 kWh/24h
• Noise: <50 dBA
• External dimensions: 72 x 76 x 208 cm
• Internal dimensions (chambers): 60 x 58.8 x 70 / 60 x 58.8 x 74 cm
• Insulation thickness: 75 mm (back) / 60 mm (sides)
• Electronics: ECT-F PLUS with backup battery for alarms up to 48 h
• Internal lighting: Full LED
• Refrigeration type: professional forced-air
• Defrost: adaptive automatic with condensate evaporation
