Hospital freezer VISION 700 TOUCH

for laboratoryfor vaccinesfor pharmacies

Overview

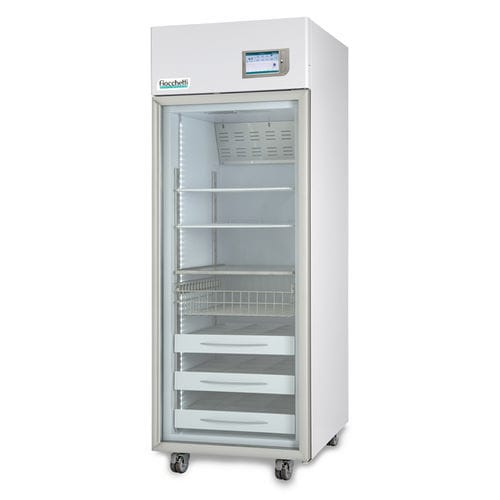

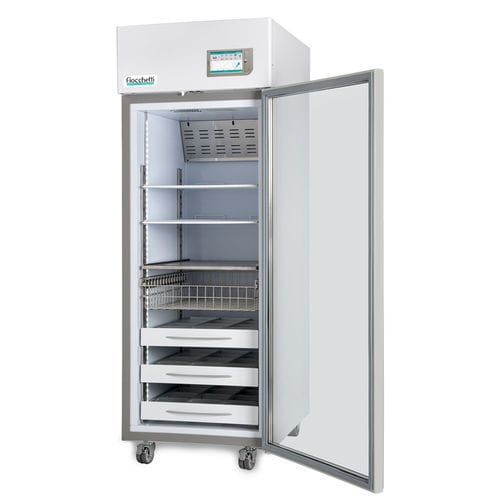

Medium-size medical freezer, column type with triple tempered glass door and 7" full touch controller. Temperature range -10 / -20°C, data logging and configurable alarms. Designed for pharmacies, hospitals, clinics and laboratories to store drugs, vaccines, products for celiac disease and other thermosensitive materials.

Key product data

• Temperature range: -10 / -20°C
• Capacity: Net 620 L (21.89 cu ft) — Nominal 700 L (24.72 cu ft)
• External dimensions (WxDxH): 75 x 87 x 210 cm
• Internal dimensions: 60 x 68 x 150 cm
• Electronic controller: TOUCH 7" full touch screen

Structure and refrigeration

• Monocoque structure with white plasticised steel interior/exterior or optional 18/10 AISI 304 stainless steel inner lining
• PUF injected insulation 43 kg/m3, thickness 75 mm, CFC-free
• Professional forced-air refrigeration with refrigerant R290
• Adaptive automatic defrost with condensate evaporation and Night & Day energy-saving function
• Full-height adjustable LED interior lighting and 4 height-adjustable feet

Controller (7" FULL TOUCH SCREEN)

• Microprocessor controller, 7" full touch interface, 0.1°C resolution, ±0.3°C accuracy
• Standard temperature and alarm recording, multi-trace real-time graph, editable set-point and alarm limits
• Slots: SD card (data history), USB (download/update), SIM slot (GSM optional)
• Connectivity: integrated web server for LAN (RJ45) and MODBUS TCP/IP; dry contact for remote alarm
• Optional modules: GSM/Wi‑Fi, DMLP TOUCH, electronic lock, external terminal board, local/cloud monitoring systems

Technical data

• Refrigerant: R290
• Energy consumption: 6 kWh/24h
• Power absorption: 0.35 kW / 2.5 A; inrush current 7 A
• Noise level: <55 dBA
• Heat rejection (EN 12900): 250 W
• Max shelves/drawers: up to 7; various wire and stainless steel drawer options

Accessories available on request

• Gateway IOT
• Local monitoring system FIOCCHETTI LAN SUPERVISOR
• Power failure alarm kit
• External terminal board for ECT-F TOUCH
• Digital key, DMLP TOUCH, GSM and Wi‑Fi modules
• 4-20mA converter, shelves and drawers for models 700–1500
• Lockable drawer for narcotics, wheels kit for model 700, access ports, PT100 probe

Identification / specifications

• Model: VISION 700 TOUCH
• Code: VIS0702
• Brand: Fiocchetti
• Temperature range: -10 / -20°C
• Net capacity: 620 L; Nominal capacity: 700 L
• External dims: 75 x 87 x 210 cm; Internal dims: 60 x 68 x 150 cm
• Insulation: PUF 43 kg/m3, 75 mm
• Controller: 7" full touch screen; data logging (SD/USB); LAN (RJ45) and MODBUS TCP/IP
