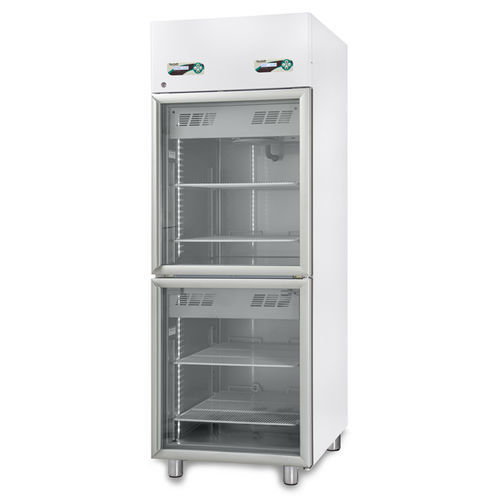

Laboratory refrigerator VISION 2T 700 ECT-F PLUS

hospitalfor vaccinesfor pharmacies

Brief description
Large-capacity combined refrigerator-freezer with dual compartments and dual compressors for storage of pharmaceuticals and vaccines at different controlled temperatures. Tempered glass doors, configurable interior with shelves, drawers and baskets; design suitable for pharmacy, hospital and laboratory environments. Full-length ergonomic handles, magnetic gasket, automatic closing with return spring and 90° hold-open; reversible door opening.

Main data
Temperature range: +2/+15°C | -10/-20°C
Total indicative capacity: 593 lt (20.94 cu ft)
External dimensions (W×D×H): 72 x 85.5 x 203 cm
Electronics type: ECT-F PLUS

Usage and general features
Designed for dual compartments with independent compressors to maintain materials at different prescribed temperatures. Glass doors allow inventory checking while maintaining improved thermal insulation; interior configurable with shelves, drawers and wire baskets for organized storage.

Structure and refrigeration
Internal dimensions: 60 x 68 x 70 / 60 x 68 x 74 cm
Nominal capacity: 350+350 lt (12.36 + 12.36 cu ft)
Net capacity: 620 lt (21.89 cu ft)
Insulation type: injected high-density polyurethane foam (43 kg/m3), CFC-free, water-blown eco-friendly injection
Insulation thickness: 60 mm
Structure: one-piece shell in white coated non-toxic steel internal/external with certified antibacterial treatment, or internal 18/10 AISI 304 stainless steel; rounded corners and tub-shaped bottom; 4 height-adjustable feet
Internal lighting: full-height LED
Refrigeration type: professional forced-air
Defrost type: automatic adaptive with condensate collection

ECT-F PLUS controller
Temperature display and setting with 0.1°C resolution, accuracy +/-0.3°C; 16-character backlit alphanumeric LCD configurable in 5 languages; 4-key membrane keypad.
Backup battery for alarm during power failure up to 48 hours; min/max temperature memory; clean contact on the electronic board for remote alarm; configurable display modes; password protection for power on/off and set-point changes; records 16 events and various temperature alarms, including high-temperature alarm for power failure.

Refrigerator technical data
Refrigerant gas: R290
Consumption: 7 kWh/24h
Power absorbed/Current: kW 0.17+0.32 / Amp 1+2.3
Starting current: Amp 3+5
Noise: <50 dBA
Heat emitted EN 12900: W 291
Max no. of shelves: 3+3 (shelf dimensions: 56 x 65 cm)
Max no. of drawers: 5+3
Internal drawer size with dividers (LxDxH) (x n.spaces): 15 x 60 x 7.5 cm (3)
Internal drawer size without dividers (LxDxH): 49 x 60 x 7.5 cm
Max no. of wire baskets: 3+3 (basket dimensions: 53.8 x 63 x 14.8 cm)
Max no. of wire drawers: 5+3 (internal size: 53.8 x 49 x 6.2 cm)

Accessories available on request

• Key lock
• External clean contacts for ECT-F PLUS
• Anti-freeze safety 2T
• DIN 13277 compliance (for ECT-F PLUS)
• Shelf for model 500
• Wire rack 14 x 42 x 15 cm (max 3 per shelf)
• Wire rack 14 x 50 x 15 cm (max 3 per shelf)
• Sliding aluminium drawer without dividers model 500
• Sliding aluminium drawer with dividers model 500
• Plexiglass front riser for drawer
• Wheel kit (2 with brake) for model 500
• Cable gland hole Ø 35 mm with plug
• Hole Ø 15 mm
• Humidity probe TN
• PT100 probe free contacts
• Power supply 220V/1~/60Hz
• Power supply 115V/1~/60Hz
• Voltage stabilizer
• Cage packaging

Characteristics / technical specifications

• Model / Commercial name: VISION 2T 700 ECT-F PLUS
• Indicative product code: Cod. VST0703
• Series: VISION 2T
• Type: Combined two-temperature refrigerator-freezer, dual compartment and dual compressor
• Temperature range: +2/+15°C (refrigeration) and -10/-20°C (freezing)
• Total net capacity: 620 lt (21.89 cu ft); nominal capacity: 350+350 lt
• External dimensions (W×D×H): 72 x 85.5 x 203 cm
• Internal dimensions and drawer sizes: see internal data (60 x 68 x 70 / 60 x 68 x 74 cm; drawers and baskets dimensions in technical data)
• Insulation: injected polyurethane foam 43 kg/m3, thickness 60 mm, CFC-free
• Internal/external materials: white coated non-toxic steel with certified antibacterial treatment; option of 18/10 AISI 304 stainless steel interior
• Refrigerant: R290
• Power consumption: 7 kWh/24h
• Power absorbed: 0.17 + 0.32 kW (current 1 + 2.3 A)
• Starting current: 3 + 5 A
• Noise: <50 dBA
• Heat emitted: 291 W (EN 12900)
• Refrigeration: professional forced-air; adaptive automatic defrost
• Lighting: full-height LED
• Door: 2 tempered glass doors IEC 61010-1, anti-condensation, low-emissivity, anodized aluminium profiles
• Closure and gasket: magnetic gasket, automatic closing with spring and 90° hold-open; reversible opening
• Controller: ECT-F PLUS with 16-character alphanumeric LCD, 0.1°C resolution, accuracy +/-0.3°C; backup battery for alarms up to 48 hours; min/max memory; clean contact for remote alarms; records 16 events; password protection
• Internal configurability: supports shelves, drawers, baskets (see max numbers and dimensions in technical data block)
