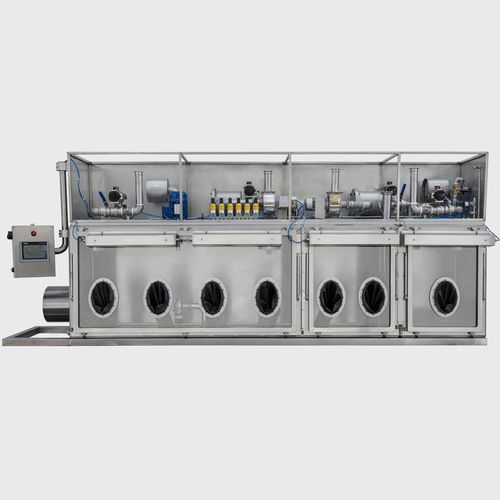

Pharmaceutical isolator containmentfillingfor active pharmaceutical ingredients
Add to favorites
Compare this product
Characteristics
- Applications
- containment, filling, for the pharmaceutical industry, for active pharmaceutical ingredients, for highly potent active pharmaceutical ingredients, weigh, for production
- Configuration
- floor-standing, modular, compact
- Other characteristics
- stainless steel, negative pressure, custom, controlled atmosphere
- OEB level
- OEB 5, OEB 6
- External width
1,800 mm, 3,900 mm, 4,050 mm
(70.87 in, 153.54 in, 159.45 in)- External depth
700 mm, 800 mm, 850 mm
(27.56 in, 31.5 in, 33.46 in)- External height
2,100 mm, 2,160 mm, 2,400 mm
(82.68 in, 85.04 in, 94.49 in)- Internal width
400 mm, 900 mm
(15.75 in, 35.43 in)- Internal depth
450 mm, 700 mm
(17.72 in, 27.56 in)- Internal height
500 mm, 900 mm
(19.69 in, 35.43 in)- Weight
300 kg, 650 kg, 700 kg, 900 kg
(661.39 lb, 1,433 lb, 1,543.24 lb, 1,984.16 lb)
Description
Isolators for manipulation of highly active substances (containment levels OEB 5 - OEB 6), engineered to interface with process and production equipment. Solutions are built to customer specifications with multiple functional configurations for weighing, filling, slurry preparation and operations in controlled atmospheres.
Main features and components
Example configurations
Technical characteristics / specifications
Main features and components
- Containment: designed for handling highly active ingredients with certifications and configurations up to OEB 5 / OEB 6 (e.g. OEL < 1 µg/m³ for OEB 5).
- Structure and compartmentalization: versions with transfer airlock for material input/output and work chamber divided into sections (e.g. two or three sections); split front access and multiple module options for extended configurations.
- Integrated process equipment: custom glass vessels for slurry preparation, supports and agitator shafts in AISI 316L stainless steel with removable impellers.
- Drives and control: Ex-rated motor located in the technical compartment, operable via touch screen panel; possibility of Ex-compliant bases and terminals (e.g. Ex 1/21 internal, Ex 2/22 external terminal).
- Auxiliary systems: automatic CIP, automatic WFI, integrated weighing systems and nitrogen inertization with oxygen monitoring to maintain negative pressure and operational compliance.
- Dedicated configurations: versions for filling and weighing of active materials with integrated weighing system and Ex-compliant base.
Example configurations
- Isolator with airlock positioned on the right side and work chamber with split front access in two sections; glass vessel for slurry preparation; agitation with Ex motor in technical compartment; automatic CIP and WFI. Indicative footprint: 3900 x 700 x 2400 mm; weight approx. 900 kg.
- Isolator for filling and weighing (OEB 5) composed of airlock and work chamber divided into three sections, complete with weighing system and Ex-compliant base (Ex 1/21 internal) with external Ex 2/22 terminal; nitrogen inertization with oxygen monitoring. Indicative footprint: 3900 x 850 x 2100 mm; weight approx. 700 kg.
- Modular isolator suitable for OEB5 containment: 3-module configuration (e.g. 3 × 1350 mm) with overall dimensions approx. 4050 x 700 x 2100 mm; total weight approx. 650 kg.
- Isolator for interfacing to a bulk container: work chamber 900 x 700 x 900 mm, airlock 400 x 450 x 500 mm; overall footprint 1800 x 800 x 2160 mm; weight approx. 300 kg.
Technical characteristics / specifications
- Containment levels: OEB 5 - OEB 6 (e.g. OEL < 1 µg/m³ for OEB 5).
- Main materials: AISI 316L stainless steel (shafts and product-contact components); custom glass vessels.
- Handling systems: agitators with Ex-certified motors, stainless shafts with removable impellers.
- Washing and water systems: automatic CIP, automatic WFI.
- Auxiliaries: integrated Ex-compliant weighing, nitrogen inertization with oxygen monitoring, touch screen control panel.
- Dimensions and weights (indicative, depending on configuration): 3900 × 700 × 2400 mm (≈ 900 kg); 3900 × 850 × 2100 mm (≈ 700 kg); 4050 × 700 × 2100 mm (3 modules, ≈ 650 kg); 1800 × 800 × 2160 mm (compact version for bulk interface, ≈ 300 kg).
