Class III glove box SGS20 HBR

containmentlaboratoryfor biocontainment

Overview

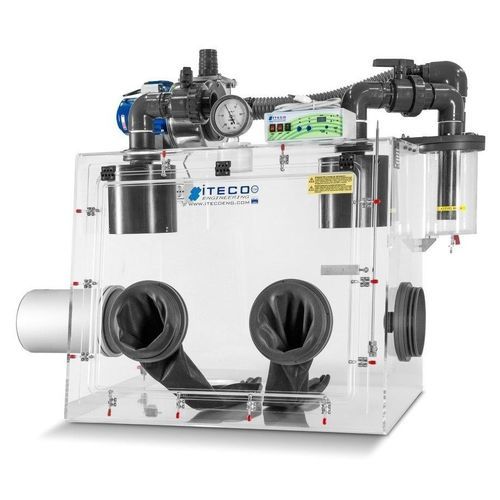

The GLOVE BOX SGS20 HBR is a Class III biological safety cabinet (glove box) designed for handling pathogens and materials with high microbiological risk. It is a sealed isolator where manipulations are performed through gloves mounted on the chamber. The working chamber is maintained at negative pressure and protected by HEPA/ULPA H14 filtration on both inlet and outlet to ensure operator and environmental containment.

Key features and functions

• Construction materials: available in PMMA (polymethylmethacrylate) or stainless steel.
• Configurations: 2, 3 or 4 glove ports configurable to operational needs.
• Containment level: designed for high biological risk work and installation in maximum containment laboratories (BSL-4); suitable for manipulation of Risk Group 4 and other highly infectious agents.
• Filtration: HEPA H14/ULPA filtration on both inlet and outlet to protect operator and environment during operation and maintenance.
• Pressure regime: negative pressure working chamber for containment.
• Pass-through: pre-chamber with double interlocked doors for secure material transfer while maintaining containment.
• Controls and safety: advanced control system and alarm functions to monitor containment and operator safety.
• Waste handling: secure waste discharge; optional liquid-detergent decontamination system available.
• Modularity: multiple units can be connected in series for expanded work areas.

Standards and references

• ISO 10648-1 Containment enclosures — Part 1: Design principles
• ISO 10648-2 Containment enclosures — Part 2: Classification according to leak tightness and associated checking methods
• ISO 14644-7 Requirements for separative devices (clean air hoods, gloveboxes, isolators and minienvironments)
• Additional technical and guidance documents (e.g. WHO laboratory biosafety guidance and national biosafety classification documents) referenced on the product page.

Technical specifications

• Product type: Class III biological safety cabinet (glove box / Class III MSC)
• Model / series: SGS20 HBR
• Materials: PMMA or stainless steel
• Glove ports: 2, 3 or 4 (configurable)
• Filtration: HEPA H14 (inlet and outlet)
• Pressure: negative working chamber
• Pass-through: pre-chamber with double interlocked doors
• Safety systems: advanced control system with alarms
• Optional: liquid-detergent decontamination system; modular connection of multiple units
