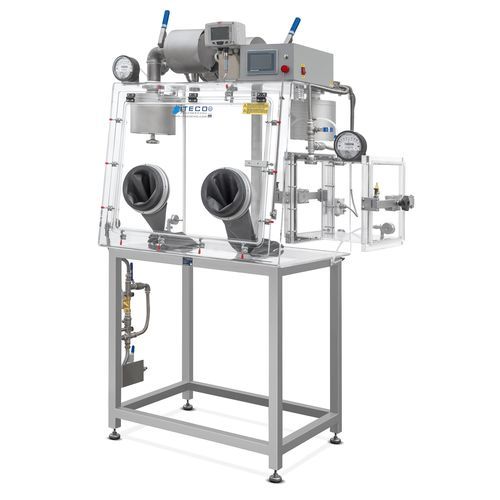

Pharmaceutical laboratory glove box SGS20/PA

for productionanaerobiccontrolled atmosphere

Overview
This glove box SGS20/PA is designed for use with inert gases to perform operations in a controlled atmosphere and to inertize components sensitive to humidity or oxygen. It is intended for industrial processes requiring moisture and oxygen control.

Equipment

• Modified atmosphere pack (kit for controlled atmosphere / inert gas)
• Process instrument for humidity and temperature measurement
• Pressure Control pack (automatic regulation of process gas operating pressure)
• Dimensions and weight: Box 900 x 650 x 750 mm; Ante-chamber approx. 340 x 300 x 300 mm; Stand 840 x 580 x 870 mm; Total weight approx. 130 kg

Additional description
Inertization reduces oxygen concentration in the enclosure by introducing an inert gas, lowering the risk of fire or explosion. In this automated SGS20/PA model the inert gas is also flowed to remove moisture and prevent water uptake by the product.

Technical specifications

• Model: SGS20/PA
• Intended use: operations in a controlled atmosphere with inert gas
• Included kits: modified atmosphere pack, humidity and temperature measurement instrument, Pressure Control pack
• Box dimensions (L×W×H): 900 × 650 × 750 mm
• Ante-chamber dimensions: approx. 340 × 300 × 300 mm
• Stand dimensions: 840 × 580 × 870 mm
• Total weight: approx. 130 kg
