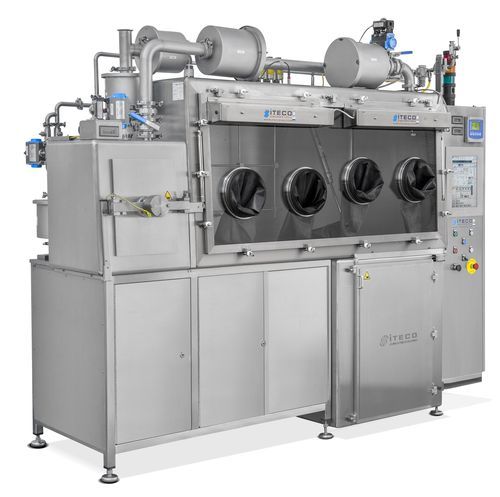

Powder handling isolator

samplingfor productionweigh

This fractioning and weighing isolator is designed for inertised handling of solvents and hazardous powders in ATEX environments. The unit integrates nitrogen pressurization and an automated inertization cycle to lower residual oxygen to safe levels prior to operations, ensuring safe handling of flammable materials.

Key features :

• Nitrogen pressurization with automated inertization cycle to reduce residual oxygen levels below 2–3% before operation.
• Automation and process management system for start-up sequence, inertization control, alarms, parameter setup and management, operation time logging and access control to programs.
• Integrated monitoring and control of exhaust system, lighting, differential pressure (main chamber and pass-through), pressure control, filter change alerts and oxygen monitoring.
• Workshop-tested unit with available demonstration videos showing the airlock (sas) opening system and drum elevator.

Technical specifications :

• Overall dimensions: 2700 mm L x 910 mm D x 2250 mm H
• Total weight: approx. 980 kg
• Electric power supply: 380 V – 60 Hz – 3P+T
• Frequency: 50/60 Hz
• ATEX compliance: ATEX Directive 2014/34/EU
• ATEX marking: II 3/-G IIB T4
• Containment: OEB5 (Smepac test)

Applications and compliance :

• Designed for use in hazardous-area production lines handling flammable solvents and toxic powders.
• Suitable for formulations, sampling, fractioning and precise dosing tasks under inert atmosphere.
• Compliant with ATEX requirements and validated for high containment (OEB5) applications.
• Delivered tested; customization and integration options available for process connection and automation.
